[IC] : CC3200
[Frequency] : 2.402~2.484GHz
[Power] : 20dBm
[Distance] : 300m
[Interface] : UART

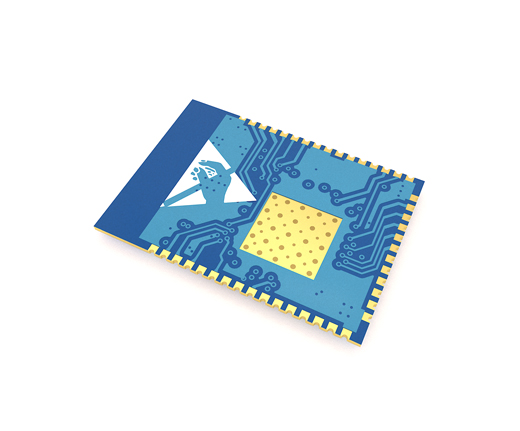

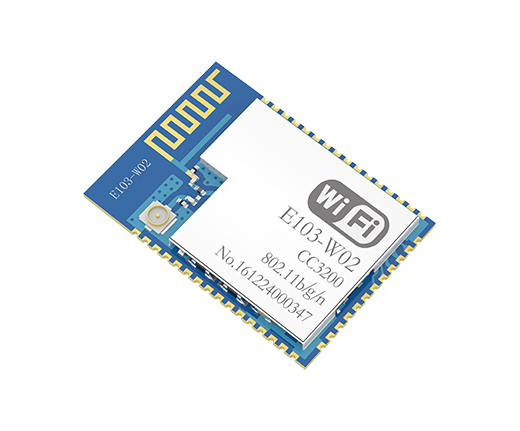

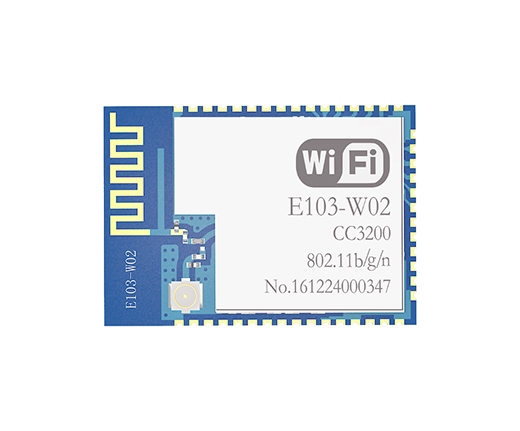

[introduction] : E103-W02, based on CC3200 of TI, is an ultra low power UART to Wi-Fi module with small size SMT packing and PCB antenna operating at 2.4 ~ 2.484GHz. It supports AT command, standard IEEE802.11b/g/n protocol and complete TCP/IP protocol stack.
RF Parameter Value Remark Working frequency 2402~2484 MHz Default: 2.4GHz
Transmitting power 20 dBm About 100mW
WiFi version 802.11 b/g/n Test distance 150 meter / 500 meter In open and clear air, with maximum power, 5dBi antenna gain, height of 2m
Hardware Parameter Value Remark Size 19 * 27 mm Antenna type PCB / IPEX 50Ω characteristic impedance, adjustable
Communication interface UART Package SMD Electronic parameter Min. Typ. Max. Unit Condition Power supply 2.4 3.3 3.6 V Communication level 2.4 3.3 3.6 mA Transmitting current 64 71 78 mA 20dBm（100mW） Sleep current 4.2 4.6 5.1 mA Operating temperature -40 20 +85 ℃ Operating humidity
10 60 90 % Storage temperature -40 20 +125 ℃
