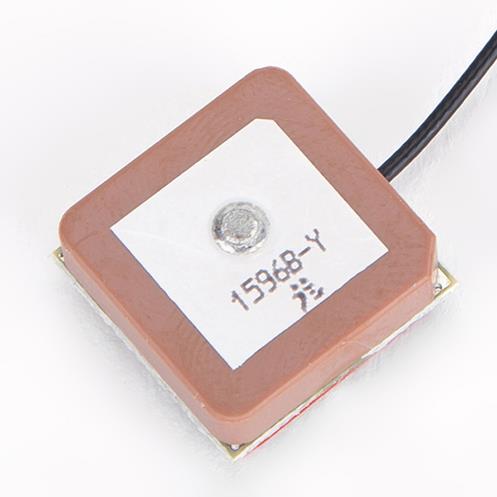

GPS Antenna -5 cm cable - Ipex/f ( Bulkhead) con. - 9*9*4 mm

Ürün Kodu : LTE-N-531
Yorumlar
241,67 TL + KDV
Stok Durumu:
Yok
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Item Specifications
    Antenna Center Frequency 1575.42±3MHz
    Band Width CF±4MHz
    Polarization RHCP
    Gain 1dBic(Zenith)
    V.S.W.R <1.5
    Impendance 50Ω
    Axial Ratio 5dB(max)

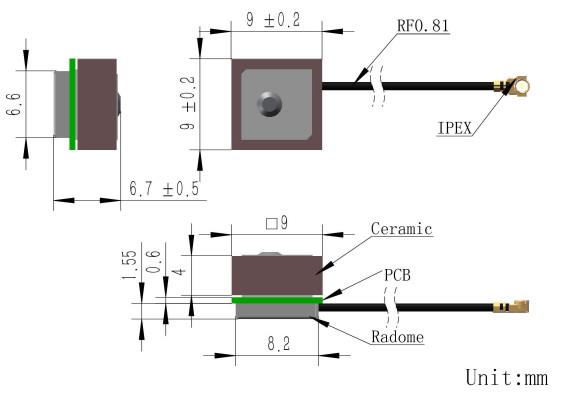

    Dimension 9*9*4mm
    LNA Gain 16±2dB
    Noise Figure <1.5dB
    Supply Voltage 2~3.6V DC
    Current Consumption ≤5mA
    V.S.W.R <2.0
    Mechanical Cable RF0.81 or others
    Connector IPEX or others
    Environmental Operating Temperature -40℃~+85℃
    Relative Humidity Up to 75%
    Vibration 10 to 55Hz with 1.5mm amplitude 2hours
    Environmentally Friendly ROHS Compliant
