120W Gigabit Ethernet PoE Switch, 4x PoE+ Ports 10/100/1000M

Ürün Kodu : LTE-WS27430
Yorumlar
Paylaş:
Fiyat Alarmı
2.421,33 TL + KDV
Alışveriş Listeme Ekle
120W Gigabit Ethernet PoE Switch, 4x PoE+ Ports, up to 30W per port, 802.3af/at compliant, Plug-and-Play, Fanless Design, High-speed 10/100/1000M auto-negotiation Ethernet port, Network Switch PoE
120W Gigabit Ethernet PoE Switch

10/100/1000M auto-negotiation Ethernet port

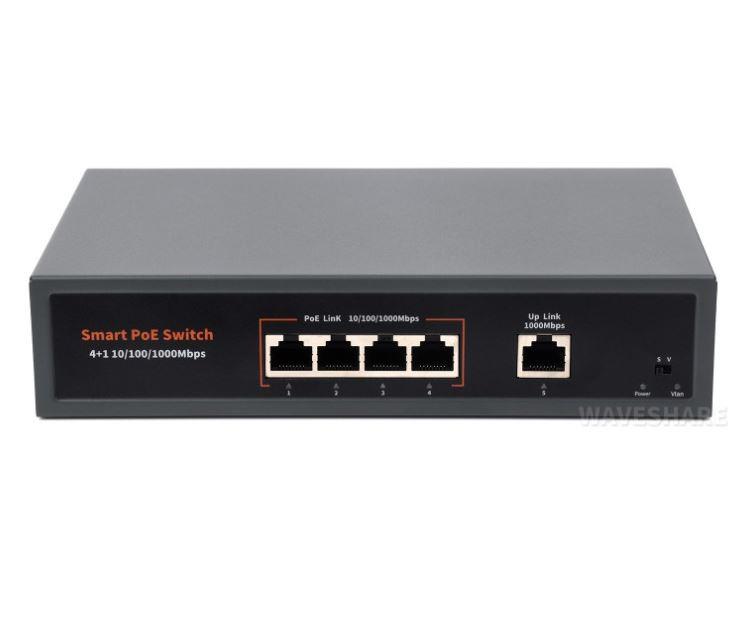

 120W Gigabit Ethernet PoE Switch, front view
Features at a glance

The Gigabit-PoE-Switch-120W is designed to meet PoE (Power over Ethernet) power supply requirements, adopts the latest generation high-speed Ethernet switching chip and high backplane bandwidth (also known as switching bandwidth) design, features ultra-fast data processing capability, enhancing data transmission performance.

Equipped with 4x PoE RJ45 downlink ports and 1x RJ45 uplink port, up to 30W per port, with a total power of 120W peak. It can automatically detect and identify IEEE 802.3af/at-compliant devices and provides power supply through the network cable.

  • 4x 10/100/1000Mbps RJ45 PoE ports (support PoE+ power supply)
  • 1x 10/100/1000Mbps RJ45 uplink port
  • Total PoE power is up to 120W with each port providing power up to 30W
  • Supports priority mechanism that can automatically detect and identify PoE devices, providing power supply through the Ethernet cable with priority, without damaging non-PoE devices.
Specifications
Network StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ports4x 10/100/1000Mbps RJ45 PoE ports
1x 10/100/1000Mbps RJ45 uplink port
PoE power supply4x 10/100/1000Mbps RJ45 ports with PoE+ power supply support
Total PoE power is up to 120W with each port providing power up to 30W
PoE connectionSupports 1/2+, 3/6- end-span and 4/5+, 7/8- mid-span wiring pairs
PerformanceStore and forward, supports 2K MAC address table depth, with 12Gbps backplane bandwidth
Forwarding Rate10BASE-T: 14880pps/port
100BASE-tx: 148800pps/port
1000BASE-tx: 1488000pps/port
Port FunctionsPower priority mechanism, fast forwarding, MAC address auto-learning and aging, IEEE802.3x full-duplex flow control and half-duplex backpressure flow control
Operation TemperatureOperation Temperature: -20℃ ~ 55℃
Storage Temperature: -20℃ ~ 75℃

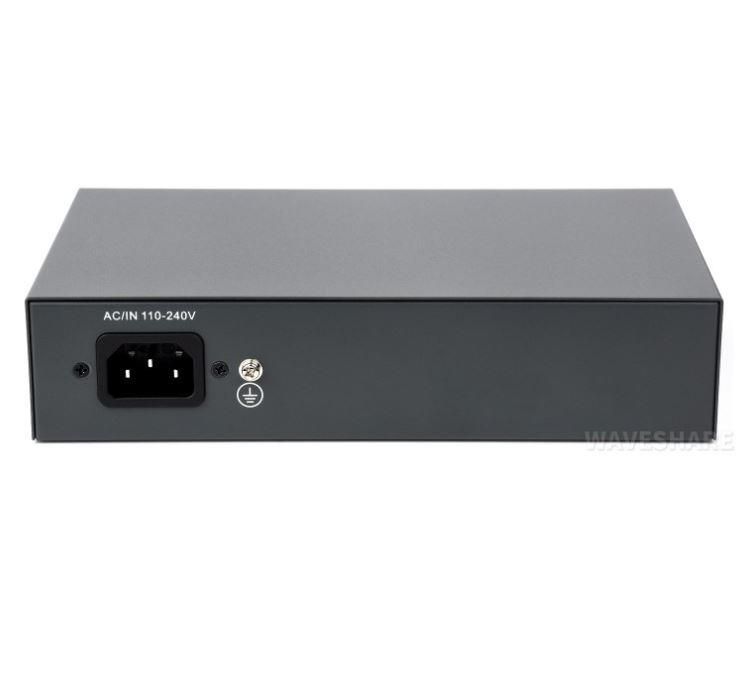

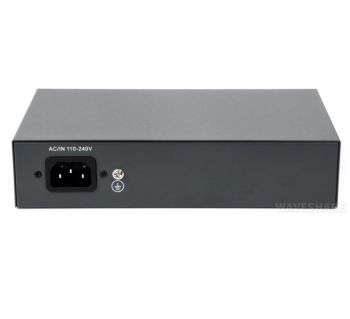

PowerBuilt-in power adapter
Input: AC/IN 110V ~ 240V
Output: DC 52V±5% 2.3A, ≤120W
EnclosureMetal material
Dimensions200mm × 118mm × 44mm (L×W×H)

Plug & Play

4x Ethernet Ports With Auto MDI/MDI-X Support, also supports IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control. No Extra Configuration Required, Plug-And-Play

120W Gigabit Ethernet PoE Switch, supports Plug & Play

Intelligent Priority Mechanism, supports More Devices

Supports priority mechanism that can automatically detect and identify PoE devices, providing power supply through the Ethernet cable with priority, without damaging non-PoE devices. Supports various PoE and non-PoE network devices such as PC, printer, smart TV, camera, wireless AP, smart home device, and Raspberry Pi, etc.

120W Gigabit Ethernet PoE Switch, supports various PoE and non-PoE network devices

Powerful PoE Performance

4x 10/100/1000Mpbs RJ45 ports with PoE+ support, the total PoE power is up to 120W with each port providing power up to 30W. Suitable for PoE applications such as security monitoring, telephone conference systems, wireless coverage, etc.

120W Gigabit Ethernet PoE Switch, powerful PoE performance

Capable of powering 4x Raspberry Pi 5 boards at the same time


* the Raspberry Pi 5 and PoE HAT (F) are NOT included.


silent Design with High-efficiency Heat Dissipation

Built-in High-efficiency Heatsink, fanless design, Lower Indoor Noise

120W Gigabit Ethernet PoE Switch, silent design
What’s Onboard
120W Gigabit Ethernet PoE Switch, onboard interface

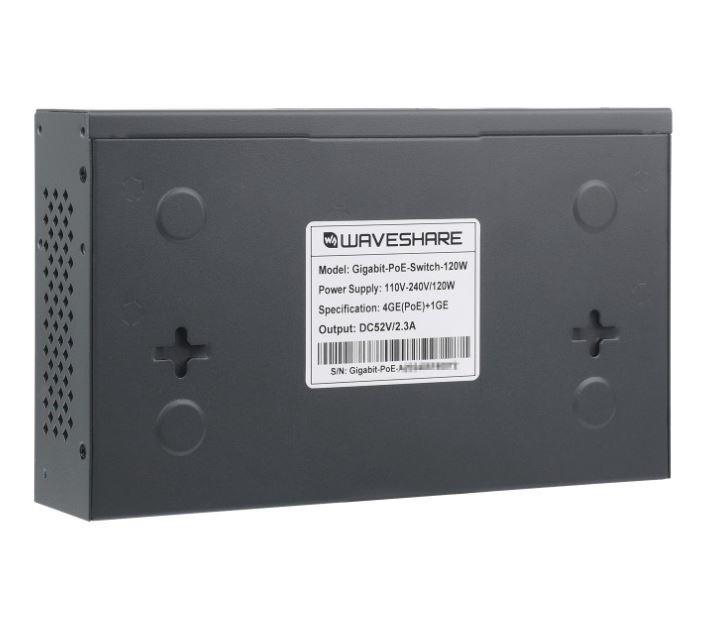

120W Gigabit Ethernet PoE Switch, onboard mounting holes
How to Install
120W Gigabit Ethernet PoE Switch, direct wall-mount installation

Direct wall-mount installation

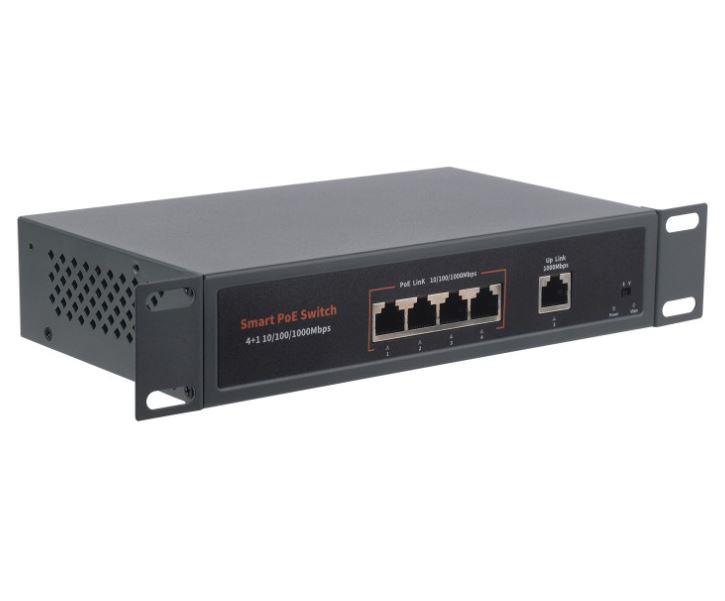

120W Gigabit Ethernet PoE Switch, mounting into the rack

Install the mounting brackets first, then mount it into the rack

Outline dimensions
120W Gigabit Ethernet PoE Switch, outline dimensions
