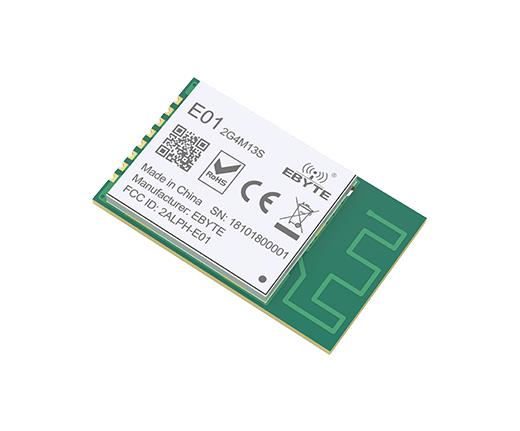

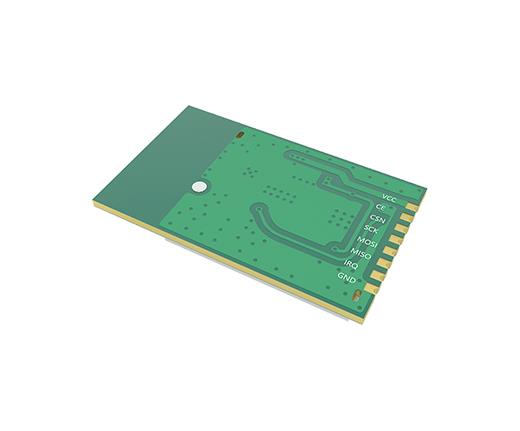

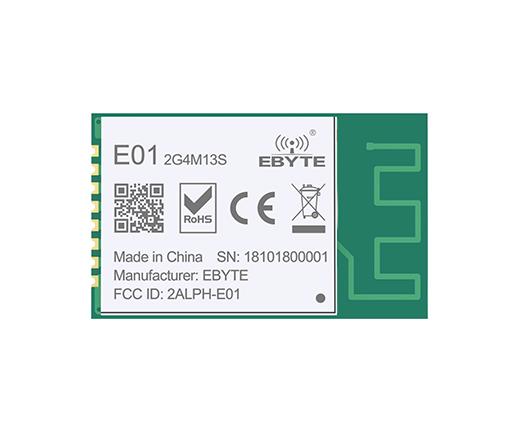

13 dBm nRF24L01P 2.4~2.525GHz. 3000m. SPI .Power supply 2~3.3V

Name: 13 dBm nRF24L01P 2.4~2.525GHz. 3000m. SPI .Power supply 2~3.3V
Brand: EBYTE
SKU: E01-2G4M13S
Price: 301.37 TRY
Availability: OutOfStock

Ürün Kodu : E01-2G4M13S

Yorumlar

Paylaş:

Fiyat Alarmı

301,37 TL + KDV

Stok Durumu:

Yok

RF Parameter	Value	Remark
Working frequency	2400~2525 MHz	Support ISM band
Transmitting power	13 dBm	Max. Power (20mW)
Receiving sensitivity	-98 dBm	Air data rate is 250 kbps
Air data rate	250k~2Mbps	Controlled via user's programming
Test distance	800m	Test condition：clear and open area, antenna gain: 5dBi，antenna
		height: 2.5m，air data rate: 250kbps

Hardware Parameter	Value	Remark
Size	14 * 23 mm	PCB antenna included
Antenna type	PCB	50 ohm impedance
Communication interface	SPI	0-10Mbps
Package	SMD

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	2	3.3	3.6	V	≥3.3 V ensures output power
Communication level	-	3.3	-	V	For 5V TTL, it may be at risk of burning down
Transmitting current	-	38	-	mA	Instant power consumption
Receiving current	-	16.8	-	mA
Sleep current	-	1.2	-	μA	Software is shut down
Operating temperature	-40	20	85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	125	℃
