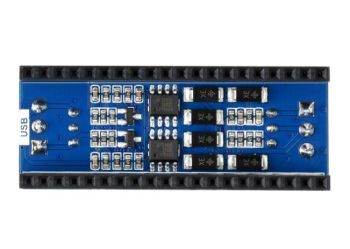

2-Channel RS485 Module for Pico
incorporates RS485 transceiver SP3485, using UART bus
Features at a glance- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Using UART bus, easily converting UART to RS485, or vice versa
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
SpecificationsOperating voltage 3.3V RS485 transceiver SP3485 Communication bus UART Baudrate 300~500000bps Raspberry Pi Pico header compatibilityonboard female pin header for direct attaching to Raspberry Pi Pico,
male pin header for stacking other modules

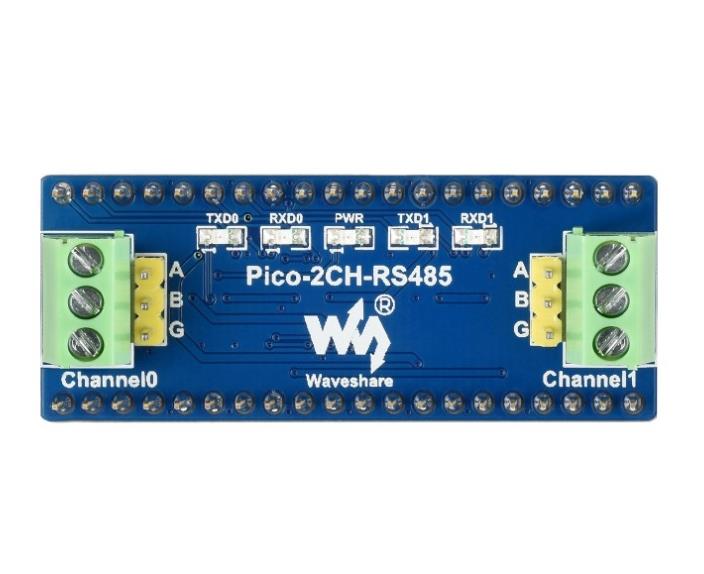

What's On Board
- RS485 bus interface
2-channel RS485 - UART status indicators
RXD0/TXD0: Channel 0 RX/TX indicators
RXD1/TXD1: Channel 1 RX/TX indicators - Power indicator
- SP3485 RS485 transceiver
- SMAJ12CA
transient suppress diode array - Raspberry Pi Pico header
Pinout definition
Outline dimensions
