[Working frequency]：2400MHz～2480MHz
[Transmission power]：20dBm
[Communication distance]：300m
[WiFi version]：IEEE 802.11 b/g/n/ax
[Air rate]：150Mbps
[Product size]：16*24mm

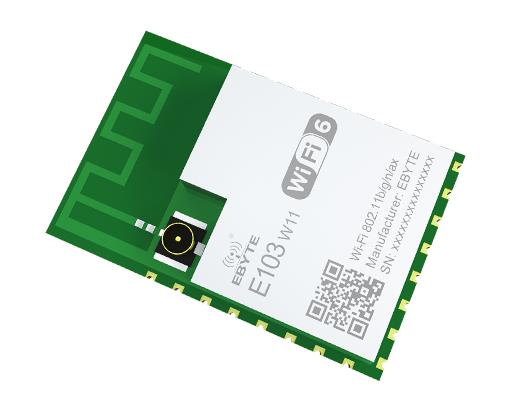

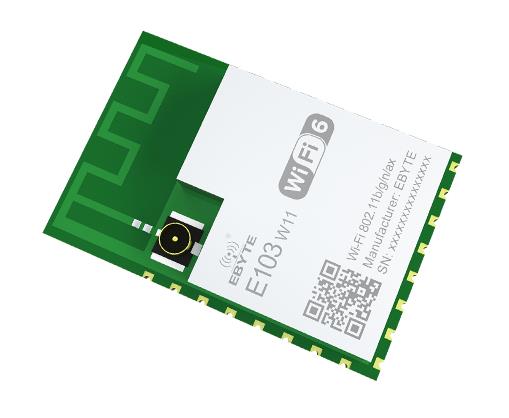

[Introduction]：E103-W11 is a cost-effective serial to Wi-Fi module, small size package, working in the 2.4~2.4835GHz frequency band. The module can use the serial port to send and receive data, which reduces the threshold for wireless applications.
Main parameters Performance Remark Min Max Typical value Max Working voltage (V) 3 3.3 3.6 ≥5V guarantees output power, higher than 5.5V will permanently burn modules I/O voltage -0.3 - 3.6 over 3.6V will cause
permanent damage to module I/OCommunication level (V) -0.3 3.3 3.6 5V TTL will permanently burn the
moduleWorking temperature (°C) -40 - +85 Industrial design Hardware parameters Value Remark Packaging method SMD - Interface Stamp hole Spacing 2.0mm Communication interface UART serial port TTL level Dimension 16*24 mm - Net weight 1.3g 士0.1g RF interface IPEX/stamp hole Equivalent impedance is about 50Ω RF parameters Value Remark Working frequency 2400MHz~2480MHz Support ISM band transmit power 19.5dBm~20.5dBm The software is adjustable, available for user self-
development and configurationReceive sensitivity
