EBYTE

20dBm. 410~510MHz 2500m. 20*14mm

Ürün Kodu : E49-400M20S
Yorumlar
251,85 TL + KDV
Stok Durumu:
Var (4 Adet)

Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • [IC]： CMT2300A

    [Frequency]：410~510MHz

    [Power]：20dBm

    [Distance]：2.5km

    [Size]：20*14mm

    [Weight]：1.2±0.1g

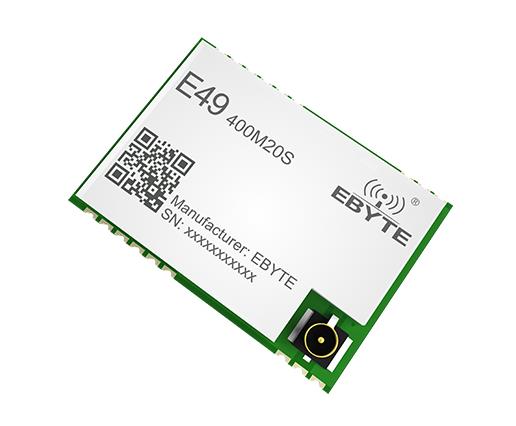

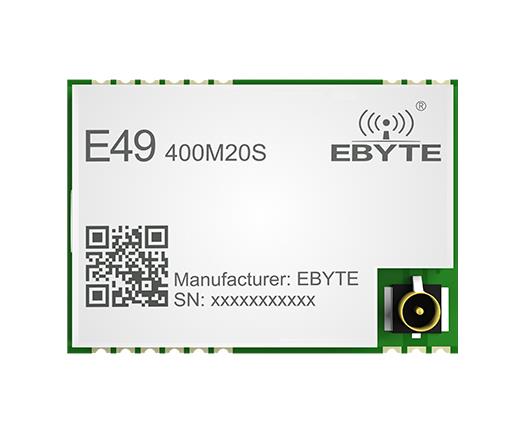

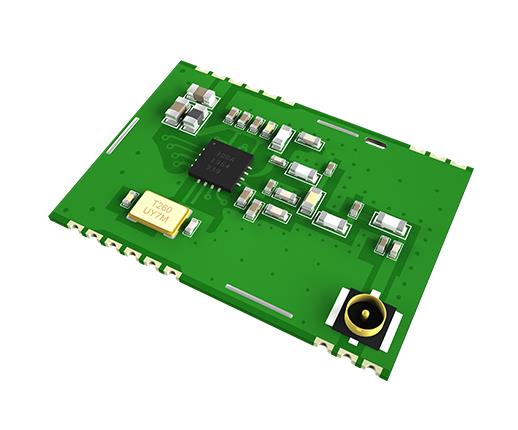

    [Introduction]：E49-400M20S is a cost-effective wireless data transmission module launched by Chengdu Ebyte. It is a pure hardware module based on CMT2300A. E49-400M20S supports a maximum transmit power of 20dBm, and users can set a lower output power to save power consumption.

    Limit Parameters

    Main Parameters Performance Remarks
    Min. Max
    Power supply（V） 2.6 3.6 Voltage over 3.6V will cause permanentdamage to module
    Operating temperature（℃） -40 85 /


    Operating parameter

    Main Parameters Performance Remarks
    Min. Typical Max
    Operating voltage（V） 1.8 3.3 3.6 Over 3.6V may permanently burn the module
    Communication level（V） - 3.3 - Using 5V level has the risk of burning
    Operating temperature（℃） -40 - +85 Industrial design
    Operating frequency（MHz） 410 433 510 -
    TX Current(mA) - 85 @Transmit power20dBm Instant power consumption
    RX current（mA） - 8.5 - -
    Sleep current（nA） 300 300 800
    Ürün Özellikleri
    FREKANS
    :
    433 MHz
