EBYTE

20dBm. 850~930MHz 2500m. 26*16mm

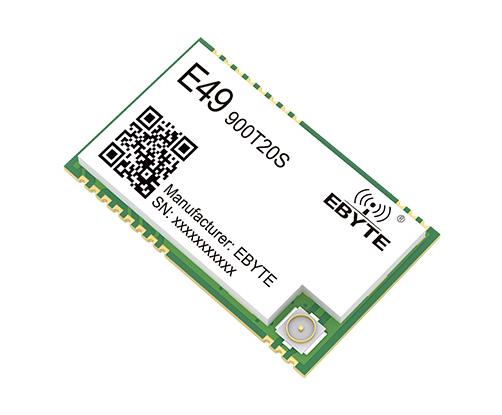

Ürün Kodu : E49-900T20S
Yorumlar
272,84 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • [Frequency]：850~930MHz

    [Power]：20dBm

    [Distance]：2.5km

    [Size]：26*16mm

    [Introduction]：E49-900T20S is an ultra-high cost-effective wireless module launched by Chengdu Ebyte. It has 4 operating modes. Each transmission mode has its own characteristics and can be applied to various application scenarios.



    Main parameter Description
    		 Remark
    Distance for reference
    		 2500m

    Test condition：clear and open area, antenna gain:5dBi,antenna height:2.5m，air data rate:1.2kbps

    FIFO
    		 54 Btye

    Maximum capacity of single transmission, auto-sub-packing when exceeding

    Cache capacity
    		 500 Btye

    -

    Modulation
    		 GFSK

    -

    Communication interface
    		 UART serial port

    -

    Package
    		 SMD

    -

    Connector
    		 1.27mm

    -

    Size
    		 26*16mm

    -

    Antenna
    		 IPEX/Stamp hole

    50 ohm impedance


    Main parameter Min. Typ. Max. Unit Remark
    Operating voltage
    		 3.3
    		 5 5.5 V Over 5.5V will permanently damage module
    Operating frequency
    		 850
    		 868
    		 930
    		 MHz
    		 Support ISM band
    Communication level - 3.3 - V For 5V TTL, it may be at risk of burning down
    TX current -
    		 97.9
    		 - mA Instant power consumption
    RX current - 12.04
    Ürün Özellikleri
    FREKANS
    :
    868 MHz
