2.4/5.8GHz Dual Band WiFi Fiber Antenna, 4/7dBi, 50cm, N Female - 1

2.4/5.8GHz Dual Band WiFi Fiber Antenna, 4/7dBi, 50cm, N Female

Ürün Kodu : LTE-Q2458F06
Yorumlar
Paylaş:
Fiyat Alarmı
1.766,43 TL + KDV

1. Introduction
This omnidirectional WiFi MIMO antenna is designed for the 2.4&5 GHz frequency band.
The enclosure of the antenna is made of heavy fiberglass.
The robust, light weight and UV resistant construction is weatherproof which makes the antenna usable
for in- and outdoor appliances.

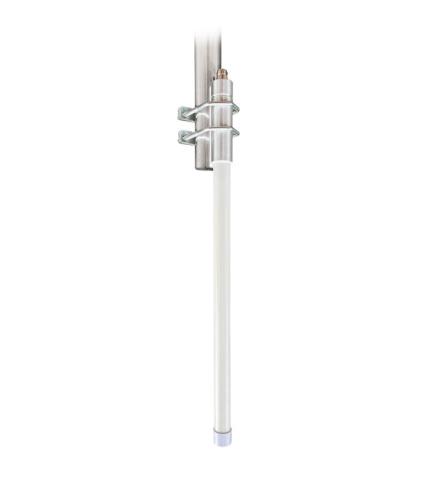

The antenna is designed for mast/pole or wall handle installation . A mounting kit installation(angle
bracket and u-clamp for 30-50mm diameter handles) is included.



2. Specification
Electrical
Frequency Range: 2400-2483/5150-5850 MHz
Band width: 83/700MHz
Gain: 4/7dBi
V.S.W.R: 2400-2483MHz ≤1.8;
5150-5850MHz: ≤2.0
Radiation: Omni-Direction
Horizontal Beam width: 360°
Vertical Beam width: 35/25°
Polarization Vertical
Lightning Protection: DC Grounded
Maximum Input Power: 50W
Impedance: 50Ώ
Connector: N Female
Antenna Radome Material: Fiberglass
Mount way: Pole
Diameter of Installation Pole: Φ30-50mm
Mechanical
Antenna Dimension: Φ25x500mm
Weight: 402g
Operating Temperature: -40℃ to+70℃
Rated Wind Velocity: 60m/s
RoHS Compliant: YES
