1. Introduction

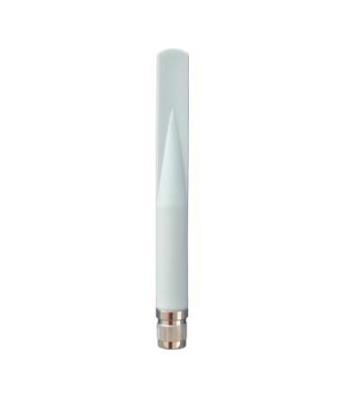

The dual band Whip Antenna is vertically polarized with an omnidirectional radiation pattern.
These antennas are mounted directly onto your wireless access points/routers and are intended
for demonstration use or short-range communications only. It is very easy to use, no configuration
or software installation required.
Linear polarized antenna can be made very small and light weight, especially useful for weight critical application
This high performance 2.4 / 5 GHz Dual Band Rubber Duck WIFI Antenna for WLan System provides
broad coverage.2. Specification
Frequency Range: 2400-2483/5150-5875MHz
Gain : 3/5dBi
V.S.W.R : ≤2.0
Radiation : Omni-Direction
Polarization : Vertical
Maximum Input Power : 5W
Impedance : 50Ώ
Connector : N Male
Antenna Radome Material : TPE
Dimensions : Φ22x180mm
Weight : 70g
Operating Temperature : -40℃ to+70℃
RoHS Compliant : YES
