WAVESHARE

2.9inch Passive NFC-Powered e-Paper, No Battery

Ürün Kodu : LTE-WS17746
Yorumlar
1.911,00 TL + KDV
Stok Durumu:
Yok
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

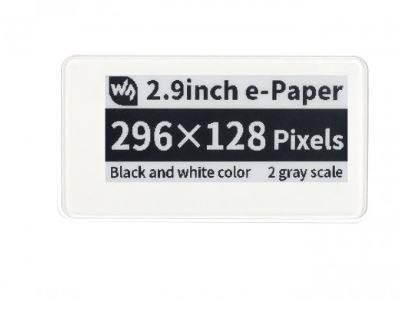

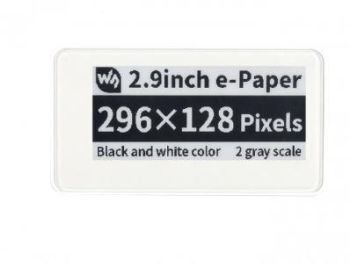

  • 2.9" NFC-Powered e-Paper

    Adopts novel passive NFC technology
    No battery required, no more battery life trouble

    Wireless NFC-Powered Display Refreshing

    Passive NFC solution, No Battery Required, No messy wiring, stable operation

    How it works

    To refresh the display content,
    use a smart phone with NFC function, or an NFC reader,
    close to the e-Paper for both wireless powering and data transfer

    This product is not compatible with Samsung smartphones


    Refreshing Example

    Refreshed By Smartphone, Comes With Android APP, As Easy As Swiping A Credit Card



    Refreshed by ST25R3911B NFC Board

    Recommended evaluation kit: 2.9inch NFC e-Paper Eval Kit

    Application examples

    Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

    Specifications


    Power supply Wireless Grey scale 2
    Display color Black / White Refresh time 2s (data transfer time is not included)
    Dot pitch 0.138×0.138 Display size 66.89mm×29.05mm
    Resolution 296×128 Outline dimension 87.5mm×47.7mm
    Viewing angle >170°
    Outline dimensions
