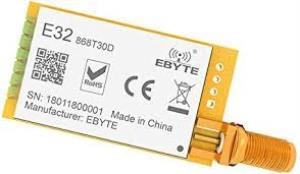

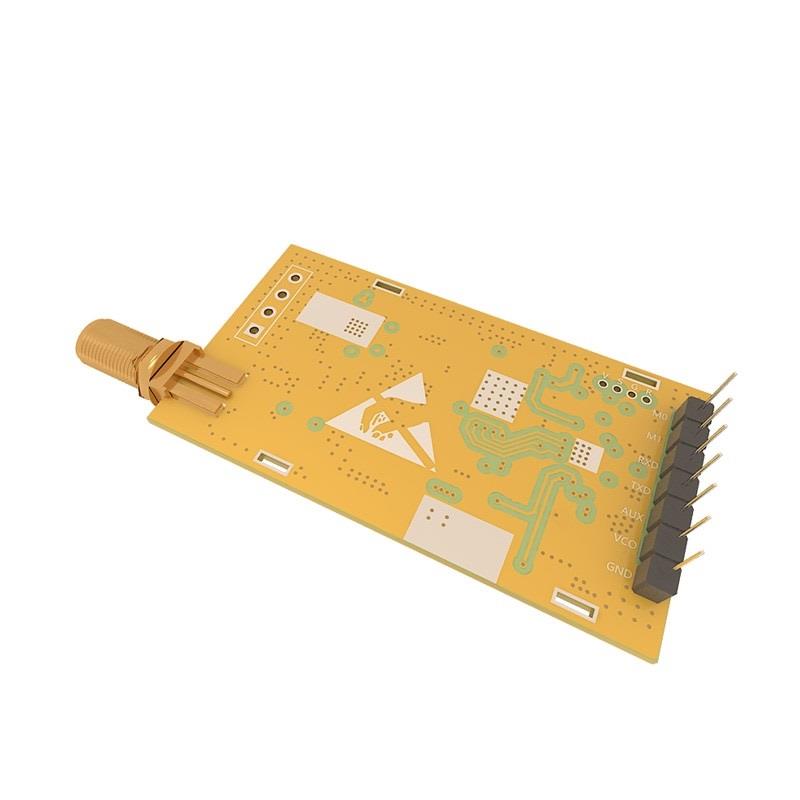

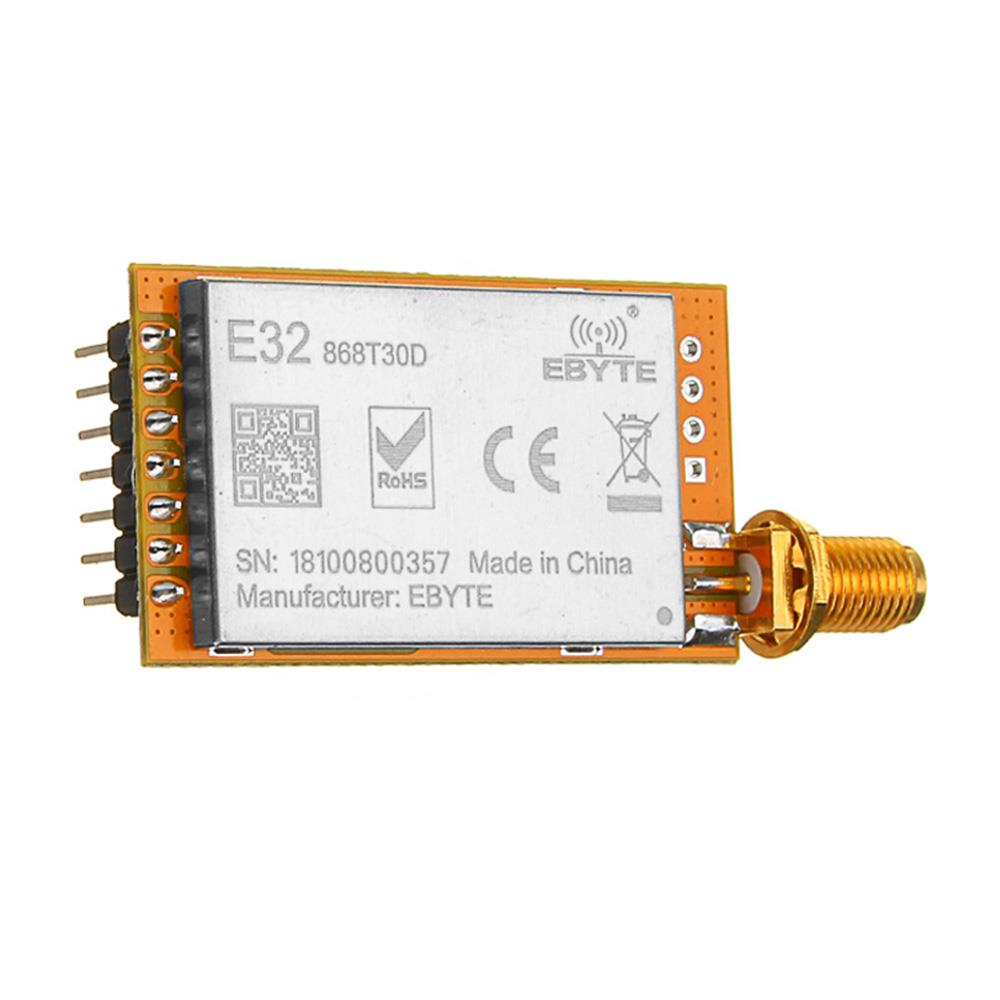

30dBm. SX1276. 868MHz. 8000m. 24*43mm.Power supply 2.8~5.5V
1.149,98
TL
+
KDV
Stok Durumu:
Yok
From now on, the E32-900T30D model has been used instead of this module.
| RF Parameter | Value | Remark | |||
| Working frequency | 862~893 MHz | Default: 868MHz | |||
| Transmitting power | 21~30 dBm | Default: 30dBm（About 1W） | |||
| Receiving sensitivity | -147 dBm | Air data rate: 0.3kbps | |||
| Air data rate | 0.3k~19.2kbps | Default: 2.4kbps | |||
| Test distance | 8000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, | |||
| air data rate: 2.4kbps | |||||
| Hardware Parameter | Value | Remark | |||
| Size | 24 * 43 mm | Without SMA | |||
| Antenna type | SMA-K | ||||
| Communication interface | UART | Baud rate: 1200~115200, default: 9600 | |||
| Package | DIP | ||||
| Buffer | 512 bytes buffer | Automatically sub-packaging with 58 bytes per package | |||
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 3.3 | 5 | 5.2 | V | |
| Communication level | 2.5 | 3.3 | 3.6 | V | |
| Transmitting current | 560 | 600 | 660 | mA | 30dBm（1W） |
| Receiving current | 20 | 21 | 23 | mA | |
| Sleep current | 4 | 5 | 6 | μA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |
| Ürün Filtreleri | ||
|---|---|---|
| FREKANS | : | 868 MHz |
| Barkod | : | 8690000014590 |
| Tedarikçi Ürün Kodu | : | E32-868T30D |
