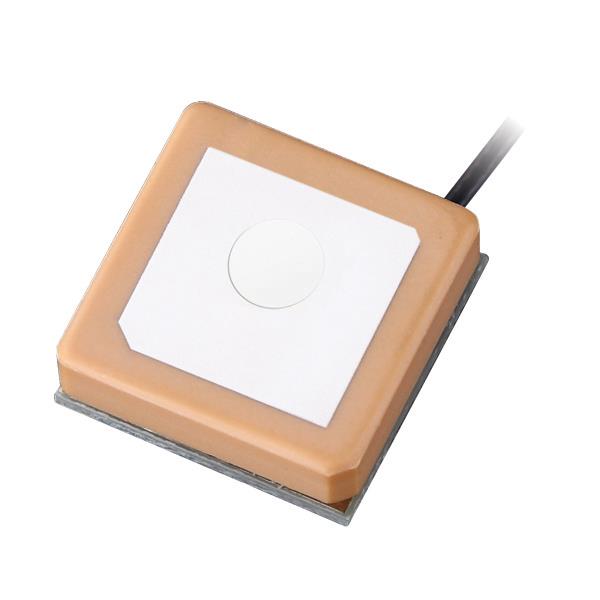

4 cm Cable - GNSS Active Antenna, Ipex/f con. Sticky Mounting

Ürün Kodu : LTE-N-054-GNSS
Yorumlar
220,73 TL + KDV
Stok Durumu:
Var (7 Adet)
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Item

    Specifications

    Antenna

    Center Frequency

    1575.42±3MHz

    Band Width

    CF±5MHz

    Polarization

    RHCP

    Gain

    5dBic(Zenith)

    V.S.W.R

    <1.5

    Impendance

    50Ω

    Axial Ratio

    3dB(max)

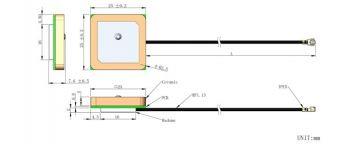

    Dimension

    25*25*4mm

    LNA

    Gain

    15±2dB

    Noise Figure

    <1.5

    Supply Voltage

    2.2~5V DC

    Current Consumption

    5~12mA

    V.S.W.R

    <2.0

    Mechanical

    Cable

    RF1.13 or others

    Connector

    IPEX or others

    Environmental

    Operating Temperature

    -40℃~+85℃

    Relative Humidity

    Up to 75%

    Vibration

    10 to 55Hz with 1.5mm amplitude 2hours

    Environmentally Friendly

    ROHS Compliant
