USR-IOT

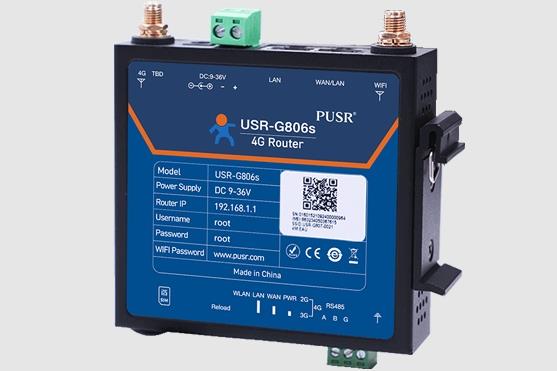

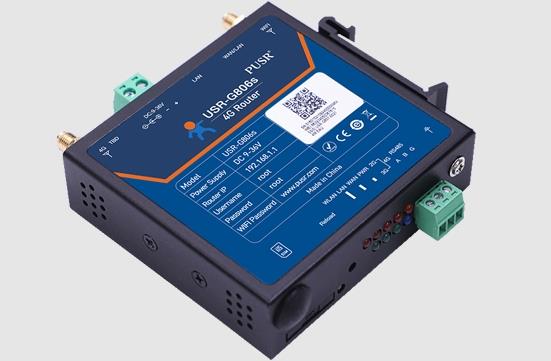

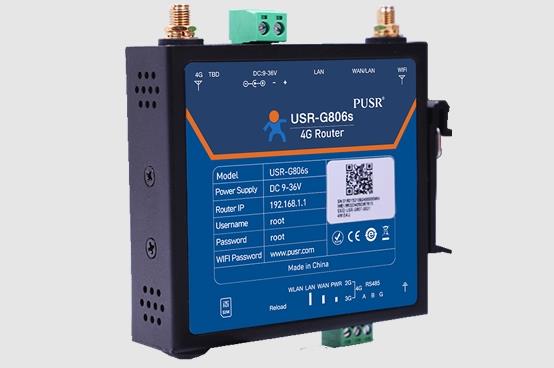

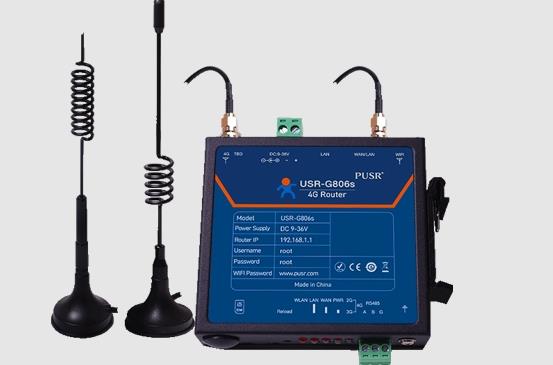

4G Industrial Cellular Router

Ürün Kodu : USR-G806S
Yorumlar
9.587,47 TL + KDV
Stok Durumu:
Var (5 Adet)

Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • Hardware Specifications
    Cellular
    Interface    		 Antenna 1 x SMA-K
    Note: North America models: 2 x SMA 4G antenna connectors.
    SIM card 1 x (3 V & 1.8 V) Standard 2FF SIM, drawer-type sim card slots
    Ethernet 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection
    1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection
    Indicators LED PWR: always on after powered on
    WLAN: always solid on when WiFi is enabled and working properly
    WAN: solid when cable is connected, blinking when data is transmitting and receiving
    LAN：solid when cable is connected, blinking when data is transmitting and receiving
    2/3/4G mode indicator：
    2G led is on after connected to 2G network
    3G led is on after connected to 3G network
    Both leds is on after connected to 4G network
    Signal strength：4 solid bars,strongest signal
    WiFi Interface Standards & Frequency IEEE 802.11b/g/n,2.4GHz, AP mode
    Data speed IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps
    Antenna 1 x SMA-K
    Transmission distance 80 meters by line of sight.Actual transmission distance depends on environment of the site.
    Power Supply Adaptor DC 12V/1A
    Connector DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN 5.08mm industrial terminal block,reverse polarity protection
    Input voltage DC 9~36V
    Working power Average 270mA/12V
    Serial Interface RS485/RS232(alternative) 3 PIN 3.81mm industrial terminal block. Note:RS485 default,RS232 please contact sales.
    Baud rate(bps) 1200,2400,4800,9600,19200,38400,57600,115200,230400
    Data bits 8
    Stop bits 1,2
    Parity NONE,ODD,EVEN
    Physical
    Characteristics    		 Housing Metal shell,IP30
    Dimensions 112.0*84.0*25.0 mm(L*W*H）
    Installation method Panel mounting, DIN-Rail mounting
    EMC Static IEC61000-4-2, level 2
    Pulsed Electric Field IEC61000-4-4, level 2
    Surge IEC61000-4-5, level 2
    Operating temperature -20℃～+70℃
    Storage temperature -40℃～+125℃
    Operating humidity 5%～95%RH（non-condensing)
    Others Reload Pinhole reset button
    TBD Debug interface (TTL Level)
    Embedded Watchdog Device runs self-detection, auto recovers from malfunctions
    Certificate CE,CCC
    Software Specifications
    Network
    Connection    		 WAN protocol PPP, PPPoE, DHCP client
    LAN protocol ARP, DHCP server, NAT
    4G network access Auto APN/VPDN, private network
    Access authentication: CHAP/PAP
    WLAN security Open system,WPA/WPA2 PSK
    TKIP/AES encryption
    IP routing Static routing
    Network diagnosis Ping,route trace,DNS
    Serial modem Work mode NET,HTTPD
    Sockets 4 sockets,4 centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC
    Modbus RTU toTCP Support
    Device
    management    		 Configuration Web
    Remote management Telnet, SSH, AT command,SNMP
    PUSR platform Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router
    Security Failover backup Failover between 4G and WAN, ensures automatic switch to alternative backup connection
    Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
    VPN Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols
    Service DDNS Remote access the device through domain name
    Alarm Email,SMS
    Others NTP client
    Timing task
    Region EMEA&Australia & Latin America & New Zealand
    Frequency TDD-LTE B38/B40/B41
    FDD-LTE B1/B3/B5/B7/B8/B20/B28
    WCDMA B1/B5/B8
    GSM/GPRS/EDGE 850/900/1800MHz
