EBYTE

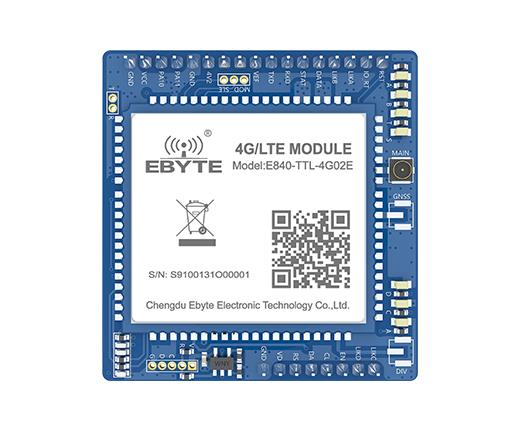

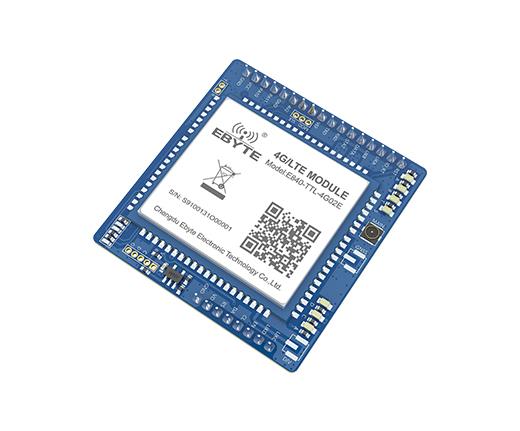

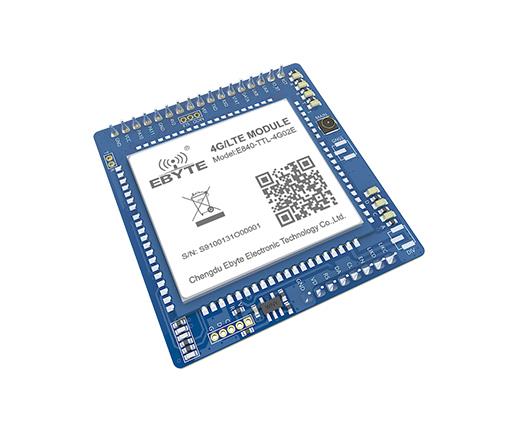

4G Module, 23~33dBm, UART, 42*40*9.7mm

Ürün Kodu : E840-TTL-4G02E
Yorumlar
78,00 USD + KDV
Stok Durumu:
Yok
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Characteristic Parameter Description
    Frequency LTE-FDD:B1/B3/B7/B8/B20/B28A
    WCDMA:B1/B8
    GSM:B3/B8
    LTE Support max. of 3GPP R8 non-CA Cat 4 FDD and TDD
    characteristic Support 1.4MHz~20MHz , Downstream support: MIMO
      LTE-FDD: Max downstream rate 150Mbps, Max upstream rate50Mbps
    WCDMA characteristic WCDMA: Max downstream rate 384Kbps, Max upstream rate 384Kbps
    GSM  characteristic GPRS: Max downstream rate 107Kbps,Max upstream rate 85.6Kbps
    EDGE: Max downstream rate 296Kbps,Max upstream rate 236.8Kbps
    Network protocol TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTPS/SMTP/MMS/FTPS/
    characteristic SMTPS/SSL/FILE protocol
      Support PAP (Password Authentication Protocol)and CHAP (ChallengeHandshake Authentication Protocol)
    Hardware characteristic Description
    Antenna IPX
    Data interface UART
    Baud rate Support Max. 921600bps,default 115200bps
    Transmitting power Class 4 (33dBm±2dB) for GSM900
    Class 1 (30dBm±2dB) for DCS1800
    Class E2 (27dBm±3dB) for GSM900 8-PSK
    Class E2 (26dBm±3dB) for DCS1800 8-PSK
    Class 3 (24dBm+2/-1dB) for CDMA BC0
    Class 3 (24dBm+1/-3dB) for WCDMA bands
    Class 2 (24dBm+1/-3dB) for TD-SCDMA bands
    Class 3 (23dBm±2dB) for LTE-FDD bands
    Class 3 (23dBm±2dB) for LTE-TDD bands
    Sensitivity FDD B1: -101.5dBm (10M)
    FDD B3: -101.5dBm (10M)
    FDD B7: -99.5dBm (10M)
    FDD B8: -101dBm (10M)
    TDD B20: -102.5dBm (10M)
    TDD B28A: -102dBm (10M)
    WCDMA B1: -110dBm
    WCDMA B8: -110.5dBm
    GSM 3: -109dBm
    GSM 8: -109dBm
    Consumption(Typical) 11uA@power off
    1.8mA @LTE sleep (PF=128)
    1.5mA @LTE sleep (PF=256)
    20mA @ idle
    Bandwidth 1.4/3/5/10/15/20MHz
    Operating temperature -30℃- +70℃, extending to -40℃~+85℃
    Operating voltage DC 5V ~ 20V
    Size 42×40×9.7 mm
