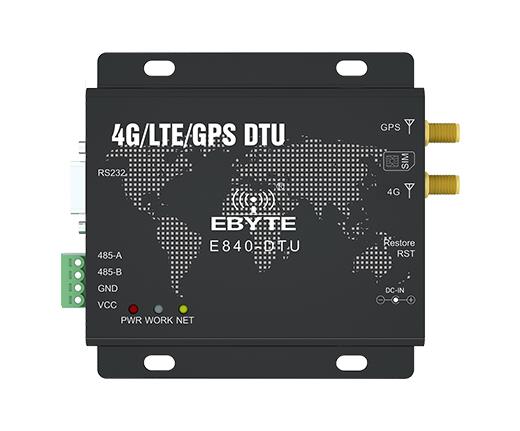

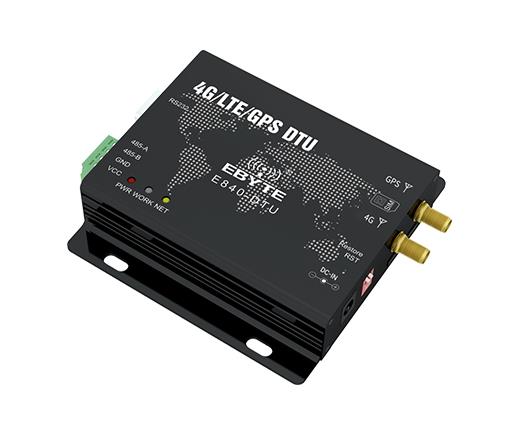

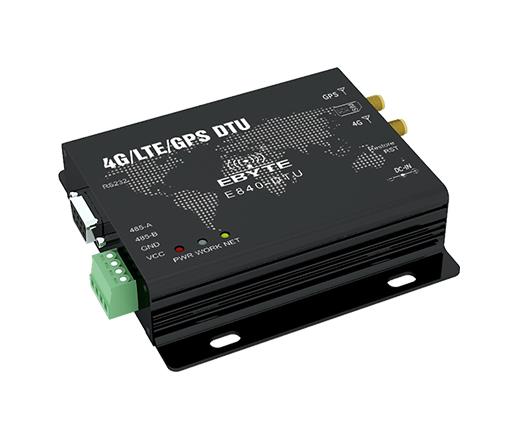

EBYTE

4G/GPS , 23~33dBm, RS485/RS232, 82*84*24mm

Ürün Kodu : E840-DTU(4G-02E)
Yorumlar
791,07 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Parameter Description
    Frequency LTE-FDD:B1/B3/B7/B8/B20/B28A
    WCDMA:B1/B8
    GSM:B3/B8
    LTE characteristic Support max. of 3GPP R8 non-CA Cat 4 FDD and TDD Support 1.4MHz~20MHz , Downstream support: MIMO LTE-FDD: Max downstream rate 150Mbps, Max upstream rate50Mbps
    WCDMA characteristic WCDMA: Max downstream rate 384Kbps, Max upstream rate 384Kbps
    GSM characteristic GPRS: Max downstream rate 107Kbps,Max upstream rate 85.6Kbps
    EDGE: Max downstream rate 296Kbps,Max upstream rate 236.8Kbps
    Network protocolcharacteristic TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTP
    S/SMTP/MMS/FTPS/
    SMTPS/SSL/FILE 协 议
    PAP (Password Authentication Protocol) and CHAP
    (ChallengeHandshake Authentication Protocol)
    Hardware Characteristic Description
    Antenna SMA
    Data interface RS485 / RS232
    Baud rate Max 921600bps,default 115200bps
    Transmittingpower Class 4 (33dBm±2dB) for GSM900
    Class 1 (30dBm±2dB) for DCS1800
    Class E2 (27dBm±3dB) for GSM900 8-PSK
    Class E2 (26dBm±3dB) for DCS1800 8-PSK
    Class 3 (24dBm+2/-1dB) for CDMA BC0
    Class 3 (24dBm+1/-3dB) for WCDMA bands
    Class 2 (24dBm+1/-3dB) for TD-SCDMA bands
    Class 3 (23dBm±2dB) for LTE-FDD bands
    Class 3 (23dBm±2dB) for LTE-TDD bands
    FDD B1: -101.5dBm (10M)


    FDD B3: -101.5dBm (10M)
    FDD B7: -99.5dBm (10M)
    FDD B8: -101dBm (10M)
    FDD B20: -102.5dBm (10M)
    FDD B28A: -102dBm (10M)
    WCDMA B1: -110dBm
    WCDMA B8: -110.5Bm
    GSM 3: -109dBm
    GSM 8: -109dBm
    Consumption(Typical) 11uA @ power off
    1.8mA @LTE sleep(PF=128)
    1.5mA @LTE sleep(PF=256)
    20mA @idle
    Bandwidth 1.4/3/5/10/15/20MHz
    Operating temperature -30℃- +70℃ extending to -40℃~+85℃
    Operating voltage DC 8V~28V
    Size 82×84×24mm
    RS485 /RS232 RS485/RS232
