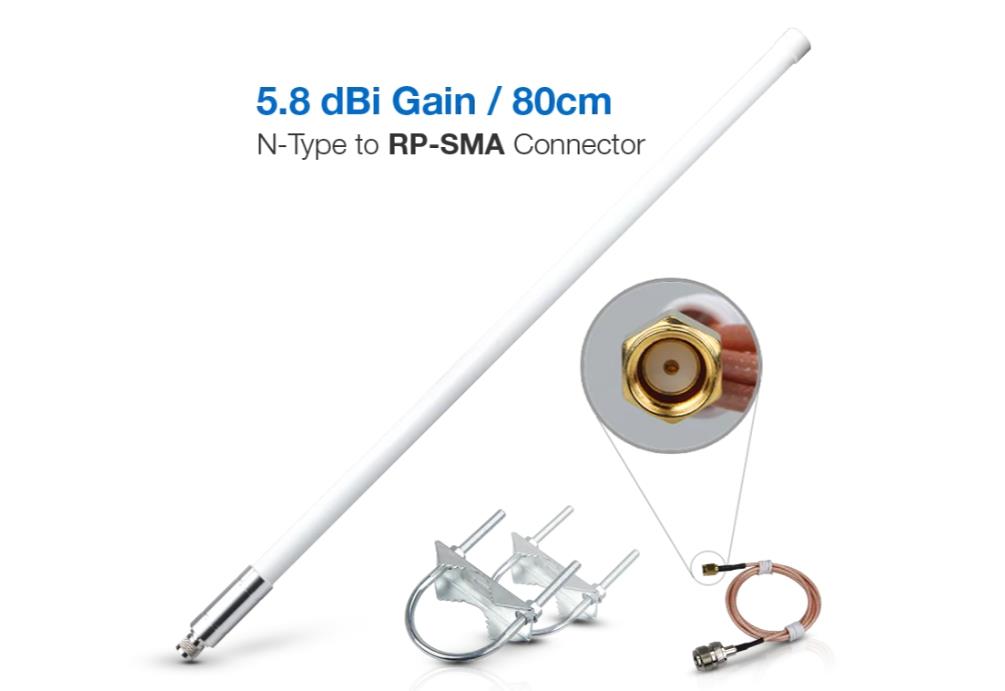

5.8 dBi N-Type (Male) to RP-SMA (Female) Fiberglass Antenna 868 MHz

The Second Generation of RAK LoRa Antennas is a high-performance omnidirectional monopole.

To choose the appropriate antenna with regards to the LoRa frequency of your region, please refer to the TTN's guide, and/or the Regional Parameters Documentation provided by the LoRa Alliance.

Notice: The included antenna connector is RP-SMA male and it is fully compatible with RAK's WisGate Developer Gateways and Hotspot V2. For compatibility with other devices, please check their documentation. If you want to know more about the connectors used in our devices you can see this blog.
The included RP-SMA to N-type cable with the antenna is for indoor use only.

Key Features

• White 5.8dBi Fiberglass Antenna
  • Frequency: 863 - 870 MHz
  • Gain: 5.1 ~ 5.8
  • VSWP: 2
  • Beamwidth: 360 degrees
  • Impedance: 50 Ohms
  • Polarization: Vertical
  • Type: Dipole
  • Radome Body: Fiberglass
  • Connector: N-Type Male
  • Bracket Inclusion: 2pcs brackets
  • Dimensions: 800 ± 10mm
  • Operation Temp: -40ºC ~ +60ºC
  • Storage Temp: -30ºC ~ +75ºC
