WAVESHARE

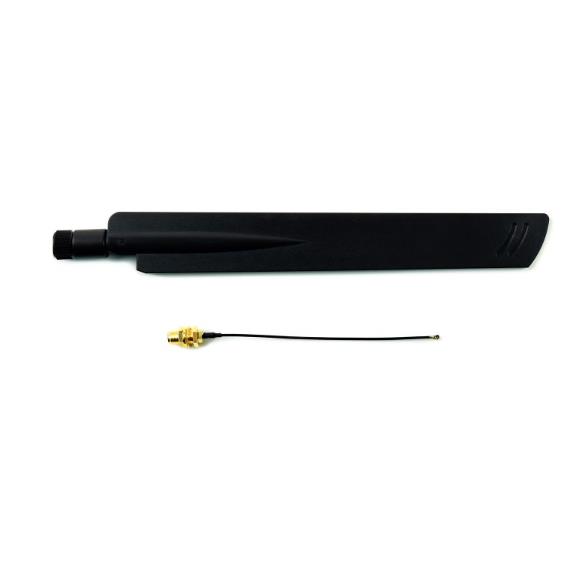

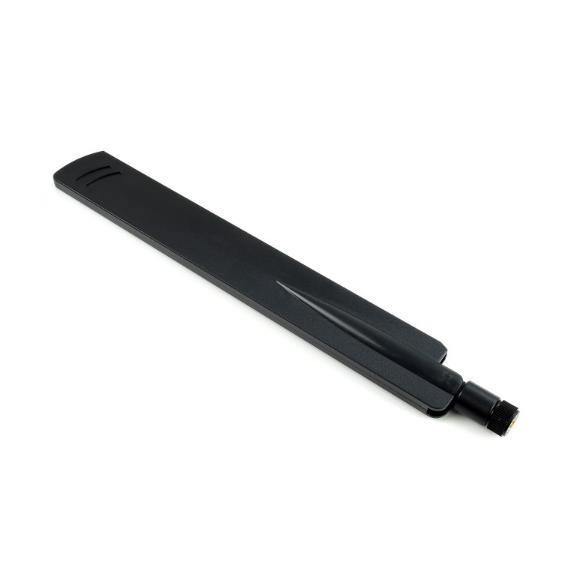

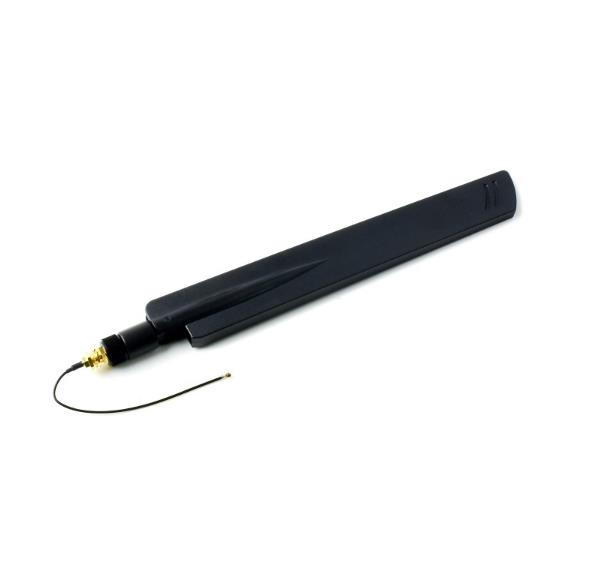

5G High Gain Omni Antenna, 5G/4G/3G/GNSS Compatible, SMA To IPEX-4 Con
Ürün Kodu
:
LTE-WS19297
Yorumlar
5G High Gain Omni Antenna, 5G/4G/3G/GNSS Compatible, SMA To IPEX-4 Con
502,28
TL
+
KDV
Stok Durumu:
Var(40
Adet)
5G High Gain Omni Antenna, 5G/4G/3G/GNSS Compatible, SMA To IPEX-4 Connector, Suitable For 5G Communication Modules
5G HIGH GAIN OMNI ANTENNA
5G/4G/3G/GNSS Compatible, SMA To IPEX-4 Connector
Specifications
| NETWORK SUPPORT | 5G/4G/3G/GNSS | OUTPUT RESISTANCE (Ω) | 50 |
|---|---|---|---|
| FREQUENCY BAND (MHZ) | 600~6000MHz | CONNECTOR | SMA needle inside |
| GAIN (DBI) | 18dBi | CONNECTION WIRE | SMA to IPEX-4 |
| SWR | < 3.0 | DIMENSIONS (MM) | 220 × 24 |
| POLARIZATION | Linear | CONNECTOR INNER DIAMETER (MM) | 6 |
| EMITTING DIRECTION | Omni-directional | MATERIAL | ABS |
| OPERATING TEMPERATURE (˚C) | -20˚C〜+ 85˚C |
Connection Example
Connecting With 5G Module SIM8202G-M2
Connecting With Raspberry Pi 5G HAT SIM8202G-M2 5G HAT
* image for reference only, Raspberry Pi, 5G HAT/Module, and antenna sucker base are NOT included.
Outline Dimensions
