868 MHz. Long range low power TRX module

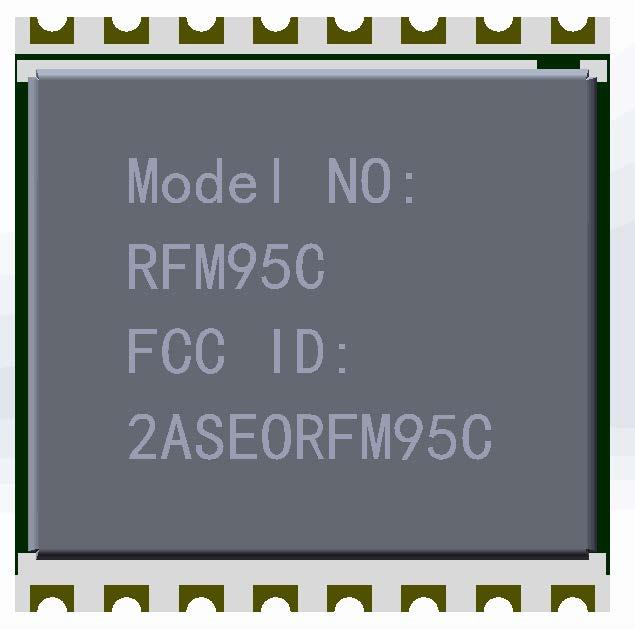

RFM95CW is an ultra-low-power, high performance LoRa transceiver for various frequency of 137-1020 MHz wireless applications. It is part of the SEMTECH RF product line, which includes complete transmitters, receivers and transceivers. The high integration of RFM95CW peripheral materials needed in the system design. The sensitivity up to - 138 dBm which can optimize the link performance of applications. In addition, RFM95CW also supports Duty-Cycle operation mode, channel interception, high-power- on reset, noise output and other more functions, which makes the application design more flexible thus to achieve product  differentiation design. The working voltage of RFM95CW is 1.8V~3.7V. When the sensitivity is reaching dBm, it only consumes 9.9 mA current. This ultra-low power mode can further reduce the power consumption of the chip.
