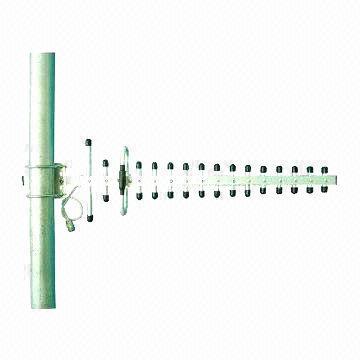

900-1800 Mhz Yagi Antenna, 16db,10m Cable, SMA/Male

Ürün Kodu : LTE-Y-900-900-1800
Yorumlar
284,78 TL + KDV
Stok Durumu:
Var (2 Adet)
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Features

    High gain Aluminum alloy frame Full day for working Optimized dimensions

    Optional installation

    H or V

    Applications

    GSM 900/1800/PHS system Repeater station system Long distance telecommunication

    Electric specifications

    Frequency range

    824 to 960/1710 to 1880MHz

    Bandwidth

    136/170MHz

    Gain

    12/12dBi

    Element

    16

    Beam width

    H:36°  V:32°

    F/B ratio

    ≥16dB

    V.S.W.R

    ≤2

    Input impedance

    50Ω

    Polarization

    horizontal or vertical

    Maximum power

    100W

    Lightning protection

    DC ground

    Connector model

    N female or others

    Mechanical specifications

    Dimensions

    800 x 180 x 54mm

    Cable length

    1m

    Antenna weight

    0.43kg

    Working temperature

    -40 to 60°C

    Rated wind velocity

    60mps

    Clamp

    U

    Pole diameter

    Ø40 to Ø50mm
