Based on ASR1603 platfom, A7672 series is the LTE Cat 1 module that supports wireless communication modes of LTE-FDD/LTE-TDD#/GSM#/GPRS#/EDGE#. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
A7672 series adopt LCC+LGA form factor and are compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules), which enable smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitate more compatible product design for the customer needs.
A7672 series support both multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. A7672 series also can support BLE# and GNSS# and it integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.

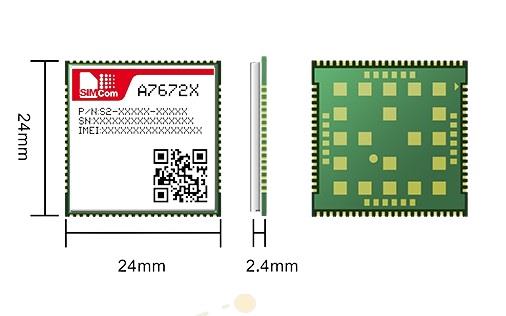

Product A7672G Form Factor LCC+LGA Dimensions(mm) 24.0*24.0*2.4 Frequency Bands B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66 B38/B39/B40/B41 GSM/GPRS/EDGE 850/900/1800/1900 MHz Temperature -40℃ ~ +85℃ Electrical Features Supply Voltage(V) 3.4~ 4.2 Power Consumption(mA) 1.5@LTE Data Transfer LTE(Mbps) 10(DL)/5(UL) EDGE(Kbps) 236.8(DL/UL) GPRS(Kbps) 85.6(DL/UL) Software Features Protocol TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/ FTPS /HTTP/HTTPS/DNS/MQTT TLS ● Jamming Detection ● TTS O File System ● WIFISCAN ● BLE 5.0 NA FOTA ● Android RIL Android 5.0/6.0/7.0/8.0/9.0 USB Driver Microsoft Windows 7/8/10 Linux/Android WWAN (RNDIS) ● ECM ● Embedded AT O Firmware Upgrade USB/FOTA Interfaces SIM Card 1.8V/3.0V UART ● USB ● ADC ● Analog audio ● PCM O GPIO ● I2C ● GNSS NA LCD NA Camera NA Certification Certification RoHS/REACH/CE-RED/FCC/Anatel/UKCA*
