INTRODUTION

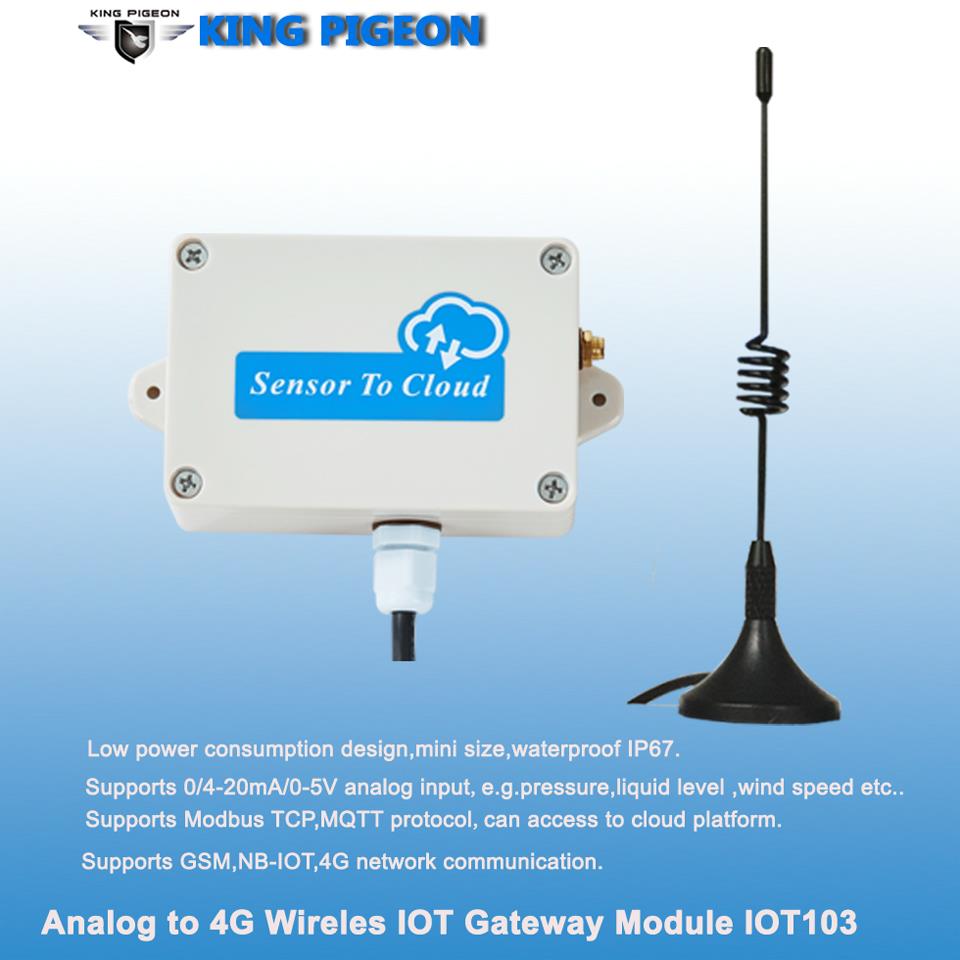

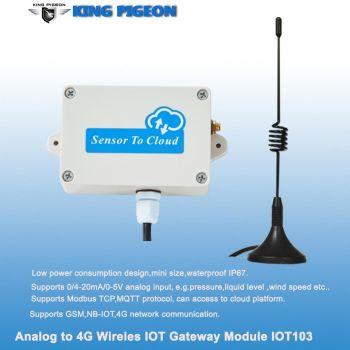

The 4~20mA Wireless IoT Module is a wireless Internet of things gateway, designed for converting 4~20mA analog transducer signal to Wireless communcation over SMS/GPRS/3G/4G/NB-IoT Cellular Network, and connect to the IoT Cloud Platform.
The 4~20mA Wireless IoT Module suitable for pressure transducers, wind speed transducers, oil level transducers,liquid level transducers,etc.
The 4~20mA Wireless IoT Module supports Modbus TCP Protocol and MQTT Protocol, compatiable KPIIOT cloud platform and other cloud platform or SCADA or OPC Server.
SPECIFICATIONS
Item
Reference Scope
DC Power supply
7-24VDC
Power consumption
Low power consumption mode Standby:＜230uA;
Normal mode:10mA~30mA,Max:230-360mA.
Communication
Optional:GSM/GPRS/3G/4G/NB-IoT/Ethernet/LoRa
Protocols
Modbus RTU Over TCP, MQTT
SIM interface
Nano
Cellular Antenna
SMA Antenna interface, 50 Ohm
Serial Interfaces
Micro USB Port;
Digital output
OC output,1A 30V DC
Digital Input
NO or NC
Analog Inputs
0-5V or 4-20mA
Temp.&Hum Inputs
AM2301:Temperature range: -40°C to +80°C, Humidity Range: 0~100%RH
Temperature Input
DS18B20:Temperature range: -55°C to +125°C,±3% RH
Temperature range
-10-+60 °C
Humidity range
Relative humidity 95% (condensation free)
FEATURES
1. Can be used as a complete product or as a secondary development module;
2. Two working modes are available:
Normal mode: Real-time data transmission,Users can inquiry the real-time status;
Low power consumption mode: Ultra low power consumption(＜230uA);
3. Multiple communication methods:GSM,GPRS,3G,4G,NB-IoT,LoRa,Ethernet,etc;
4. Coverting 4~20mA analog signal to cloud platform over cellular network;
5. Support configure parameters and query real-time data via SMS,software,cloud platform;
6. Up to 10 SMS Alert and dial numbers, can program to receive specified alarm message;
7. Support two different server centers,can set IP address or domain name ;
8. Support Modbus RTU over TCP and MQTT protocol;
9. Wide range power supply 7~24VDC with phase-reversal protection;
10. Using Nano sim card,support PIN code function;

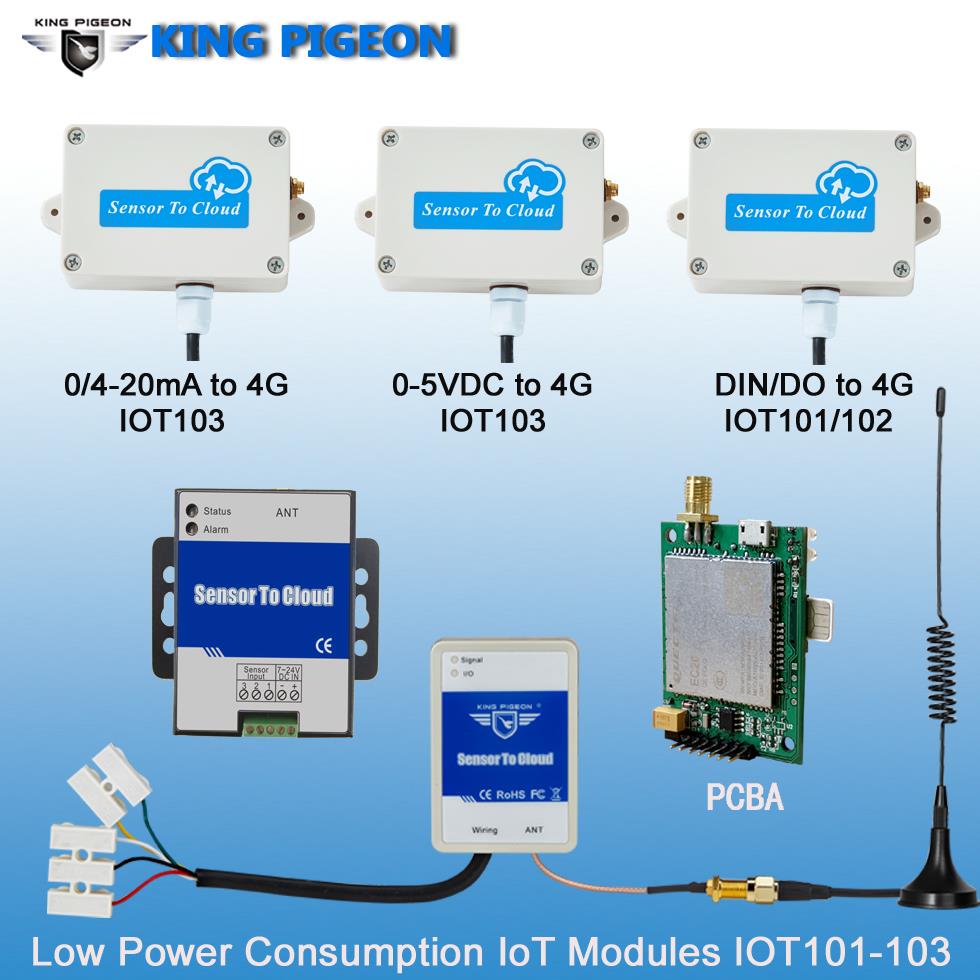

11. Provide PCBA or waterproof enclosure,can be used outside.
