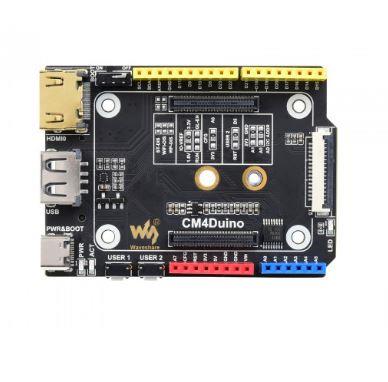

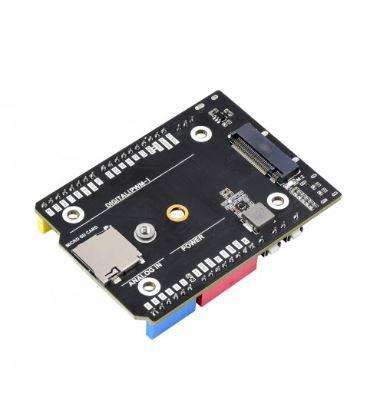

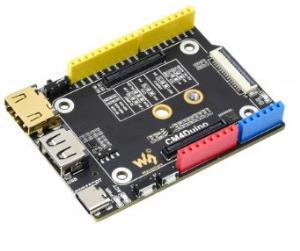

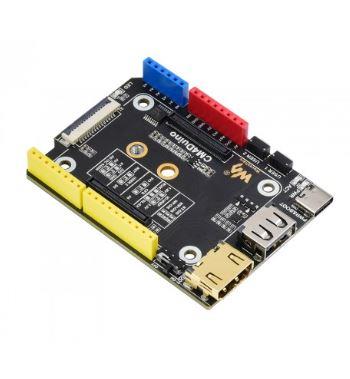

Arduino Compatible Base Board For Raspberry Pi Compute Module 4, HDMI,

Ürün Kodu : LTE-WS21738
Yorumlar
5.036,12 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • CM4-Duino Base Board

    Linking the powerful ecosystem of Arduino



    Specifications
    CM4 SOCKET suitable for all variants of Compute Module 4
    CONNECTOR M.2 M KEY slot, for connecting communication module or NVME SSD
    Arduino compatible GPIO header
    USB USB 2.0 Type A × 1
    CAMERA MIPI CSI-2 × 1 (15pin 1.0mm FPC connector)
    VIDEO HDMI × 1, supports 4K 30fps output
    STORAGE Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
    POWER INPUT 5V
    DIMENSIONS 73.58 × 53.34mm
    Connecting With Compute Module 4

    Standard CM4 Socket, Suitable For All Variants Of Compute Module 4

    Various Useful Interfaces
    Pinout Definition
    Outline Dimensions
    Resources & Services
    WIKI: CM4-Duino

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    What's The Differences
    CM4 BASE BOARD INTERFACE COUNT AND SPECIFICATIONS
    POE GIGABIT
    ETH    		 40PIN
    GPIO    		 PCIE USB① DSI HDMI CSI RTC FAN
    HEADER    		 POWER
    INPUT    		 FEATURES

    NANO A    		     √   2.0×1     ×1     5V CM4 sized

    NANO B    		   ×1 √   2.0×1 ×1 ×1 ×1     5V CM4 sized

    DUINO    		       M.2 M 2.0×1   ×1 ×1     5V Arduino compatible

    MINI BASE A    		   ×1 √ M.2 M 2.0×4 ×1 ×2 ×2   5V 5V mini size

    MINI BASE B    		   ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5V 5V mini size

    TOUCH SCREEN    		   ×1   M.2 M 2.0×4   ×1 ×1     5V IPS screen

    BINOCULAR CAMERA    		   ×1 √ M.2 M 2.0×4   ×2       5V dual 8MP
    cameras

    4CH RS485    		   ×1   M.2 M 2.0×2   ×1 ×2 ×1 5V 7-36V dual ETH

    DUAL GIGABIT ETH    		   ×2 √   3.0×3 ×1 ×2 ×2 √ 5/12V 7-36V

    IOT DUAL GIGABIT ETH
