ARM Embedded Industrial Controller (IoT Controller)

NOTE: THIS PRODUCT HAS 4.5G LTE + WI-FI + ETHERNET + IO

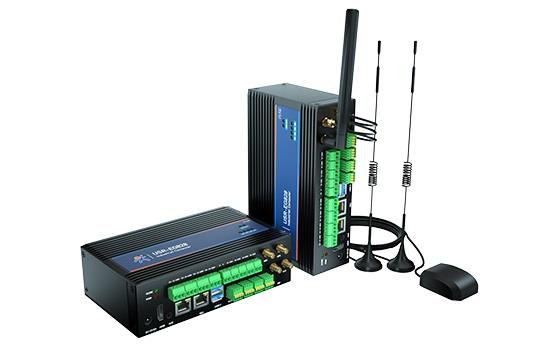

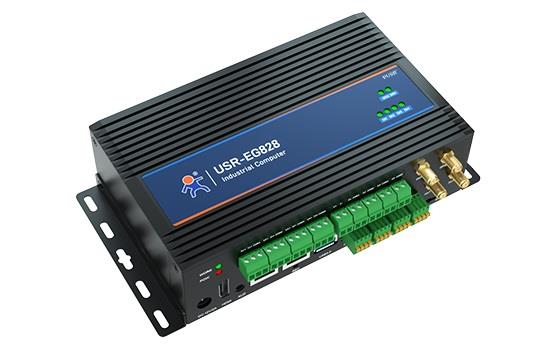

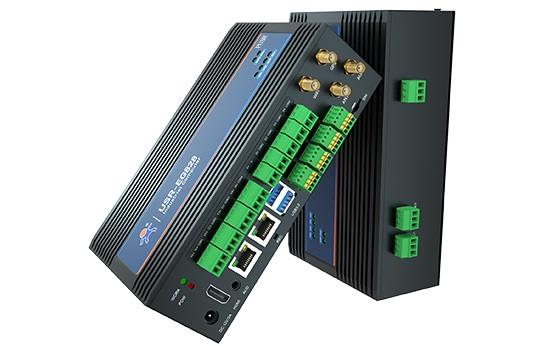

USR-EG828 | ARM Embedded Industrial Computer

USR-EG828 is a new generation of industrial box computer, supporting global 4G cellular frequencies. It is a Linux open source and an ARM architecture industrial computer which is eqquiped with a 4-core 64-bit high-performance ARM architecture CPU design with a main frequency of up to 2.0G ensuring the strong general computing performance. It has AI neural network processor NPU integrated, computing performance up to 1.0TOPS, support a variety of AI development tools and interfaces. It comes with Linux OS with Android OS optional.

Powerful Hardware Performance

• 1. Processor: Rockchip RK3568, ARM architecture, Cortex-A55 with 4-core 64-it, main frequency up to 2.0 GHz
• 2. GPU: ARM G52 2EE GPU, embedded high performance 2D acceleration hardware
• 3. AI Algorithm: Improve edge computing speed with AI power based on 1 Tops
• 4. Memery&Storage: 4G DDR, 32G SSD

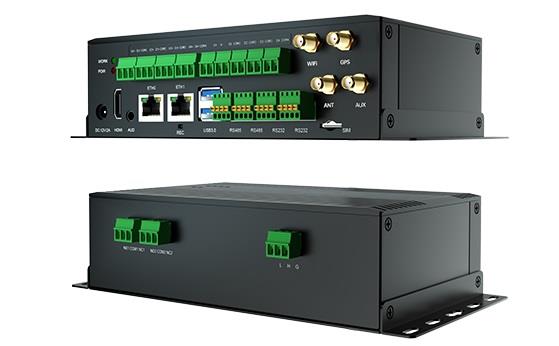

Rich Hardware Interface
• I/Os: AI, DI, DO.
• Serial Port: RS232, RS485, CAN.
• Others: Ethernet ports, WiFi, GPS, USB3.2, etc.
• eSIM supported(Need Customized).

• 1. Released Linux Ubuntu 20.04 version, supporting visual development
• 2. Full integration of interface driver, faster application development
• 3. Re-installed Node-RED and Docker, save your time

• 1. Support globle 4G cellular networks, Gigabit Ethernet and Wi-Fi, mutual backup of networks
• 2. Built-in router function: VPN, firewall, and network diagnosis to ensure data security
• 3. With PUSR platform, can realize remote networking, quick network construction

• 1. Built-in edge computing service, simple configuration, fast application
• 2. Support multiple industry protocols and PLC protocols, applicable for different device
• 3. Local linkage, flexible reporting method, communication with MQTT server or mainsteam IoT platform

Support video AI model

• 1. Support AI model such as: Caffe/Mxnet/TensorFlow/TF Lite/ONNX/Darknet
• 2. Rich examples, perfect execution of marginal AI tasks, such as face recognition, speech recognition, image recognition, etc

• 1. Intelligent retail, vending machines, express cabinets, food delivery cabinets, advertising machines, energy storage cabinet industrial computer;
• 2. Industrial automation equipment, telecommunication servers, intelligent manufacturing, smart grid, energy monitoring controller;
• 3. Intelligent medical treatment, medical machinery equipment, remote diagnosis and treatment, medical image analysis, medical ECG monitor;
• 4. Intelligent vehicle gateway, AGV robot, intelligent traffic video surveillance, automatic driving, intelligent driving test;
• 5. Building energy saving controller, recycling cabinet, intelligent water and electric meter monitoring, fire gas safety monitoring.

Selection list
