PRODUCT DETAILS
Description
ATOM PoE is an Ethernet accessory for the M5 Atom series,which Supports PoE(Active Ethernet)technology. The built-in PoE module can directly supply power to the entire device through a PoE hub/switch without a separate power supply, effectively reducing the cost of your setup. It has a built-in W5500 Ethernet controller, integrated TCP/IP protocol stack, with 8 independent hardware sockets, 10/100M Ethernet data link layer (MAC) and physical layer (PHY) to provide a more convenient Internet connection solution for your embedded systems. It can meet the wired network access requirements in the production environment.
Product Features
- Supports PoE IEEE802.3 AF
- Wired Ethernet Access
- 8 independent hardware sockets
- Supports TCP、UDP、ICMP、IPv4、ARP、IGMP、PPPoE
- Integrated 10BaseT / 100Base-T Ethernet PHY

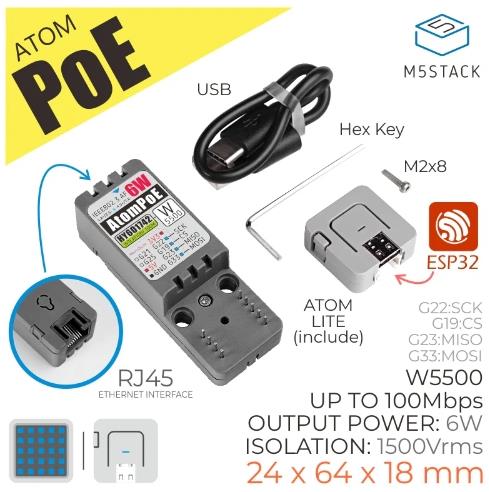

Includes
- 1x ATOM PoE
- 1x ATOM LITE
- 1x TYPE-C USB Cable（20cm)
Application
- Remote control
- Wired Internet connection
Specification
Resources Parameter Ethernet Chip W5500 Supported Protocols TCP、UDP、ICMP、IPv4、ARP、IGMP、PPPoE PoE Power Supply Idle pin power supply(10M/100M Ethernet),J4&J5(VC-),J7&J8(VC+) PoE Spec IEEE802.3 AF Net Weight 22g Gross Weight 44g Product Dimension 24*48*18mm Packaging Dimension 54*54*20mm
