Features at a glance

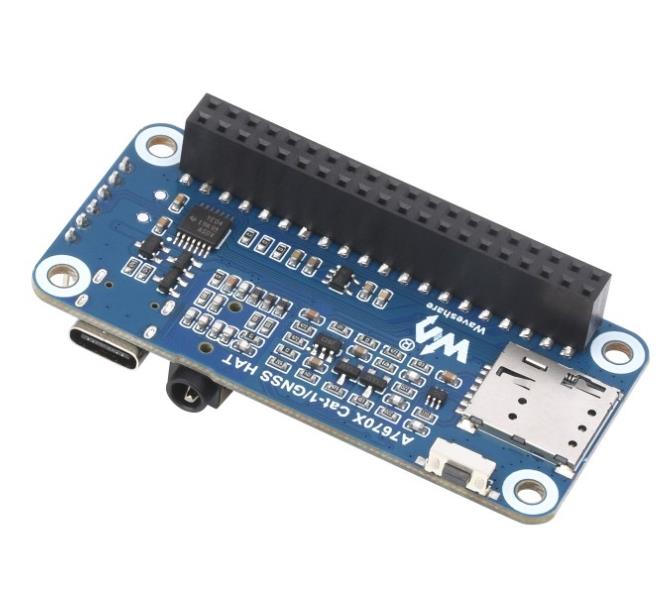

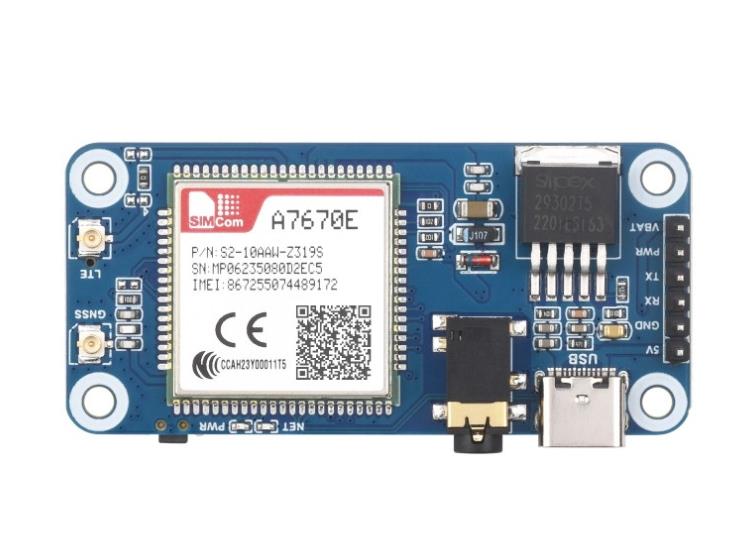

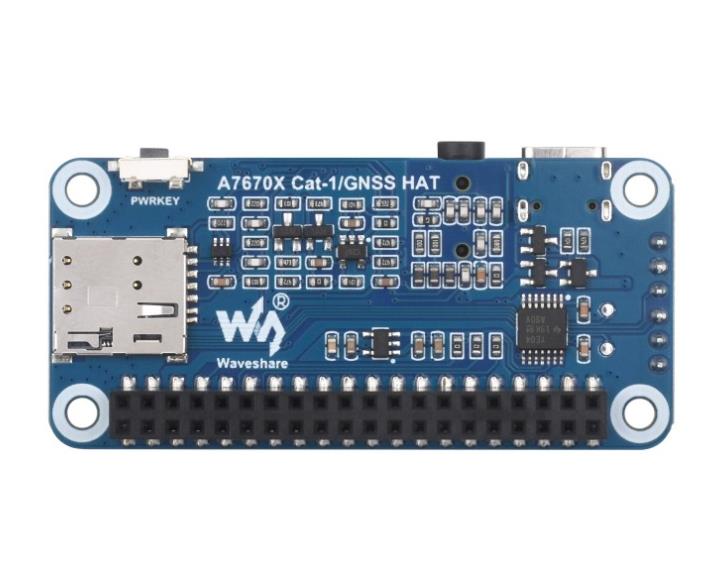

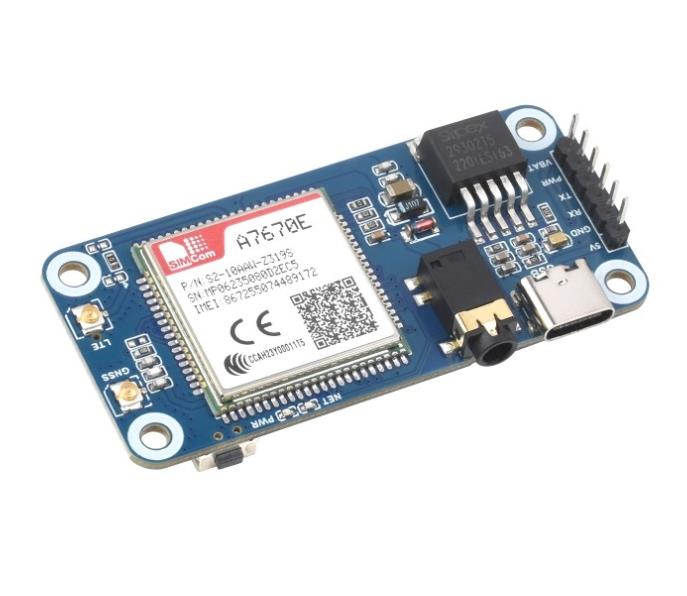

The A7670E Cat-1/GNSS HAT is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps downlink rate and 5Mbps uplink rate. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications like remote information processing, monitoring devices, POS, industrial routers, remote diagnosis, satellite positioning, and so on.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
- Supports dial-up, telephone call, SMS
- Supports LBS base station positioning, it is able to get the approximate position info via mobile network
- Supports GPS, BeiDou, GLONASS positioning
- TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words
- Onboard USB interface, for testing AT Commands, network communication, and so on
- Onboard audio jack for sound recording, making telephone calls, listening the TTS resulting speech, etc.
- Breakout common used control pins of the A7670E module, make it easy to connect with hosts boards like Arduino/STM32
- SIM card slot, supports 1.8V/3V SIM card
- 2x LED indicators, easy to monitor the operating status
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
SpecificationsFrequency band LTE Cat-1 LTE-FDD: B1, B3, B5, B7, B8, B20 2G GSM/GPRS/EDGE: 900/1800 MHz GNSS GPS, BeiDou, GLONASS SMS and Audio SMS Supported types: MT, MO, CB, Text, PDU Storage: USIM card (CB couldn't be stored on SIM card) Audio feature Standard 3.5mm audio jack for audio input/output Other Power supply 5V (via USB port or 5V pinheader), 3.7 ~ 4.2V (via VBAT pinheader, supports 3.7V Li-ion battery power input) Operating voltage 3.3V Dimensions 65 × 30.5mm
Dial-up on Windows/LinuxLTE Cat-1: up to 5Mbps (uplink) / up to 10Mbps (downlink)
EDGE: up to 236.8Kbps (uplink / downlink)
GPRS: up to 85.6Kbps (uplink / downlink)
Cloud CommunicationSupports communication protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
Pinout definition
Application Exampleprovides multiple networking demos with Waveshare.cloud, using the lightweight MQTT protocol to achieve data visualization service
Waveshare.cloud Supportprovides tutorial and demo for quick start of smart IoT solutions, with large-screen Data Visualization display to meet various application scenarios
Smart garden solutions:
The A7670E Cat-1/GNSS HAT can report various sensor data of the garden through MQTT to remotely control device ON/OFF, irrigation, fertilization, and so on.
Server Performance Cloud Monitoring:
The A7670E Cat-1/GNSS HAT can report various performance parameters of the Raspberry Pi server through MQTT, and monitor the operation status in real-time through the cloud platform.
IoT GPS Mobile Positioning:
The A7670E Cat-1/GNSS HAT can regularly report the data of the GPS positioning module through MQTT to realize mobile detection, animal or device positioning and tracking, etc.Outline Dimensions
