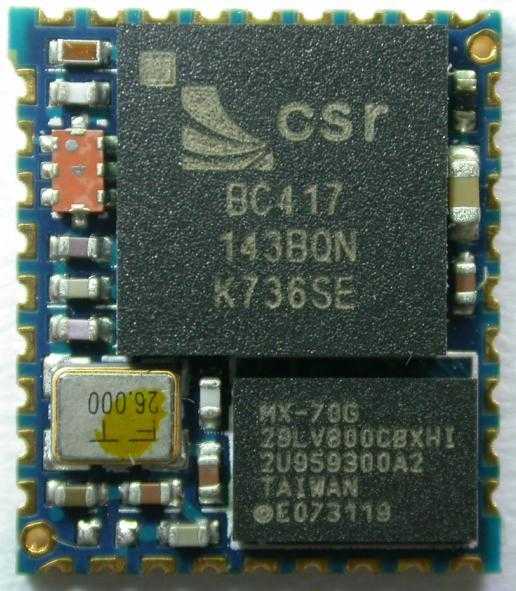

Class2 BC04-ext mini Module

•  The module is a Max.4dBm( Class2 ) module.

•  Bluetooth standard Ver. 2.1 + EDR compliant + EDR compliant+ EDR compliant + EDR compliant +
   EDR compliant+ EDR compliant+ EDR compliant + EDR compliant+ EDR compliant+ EDR compliant.
•  Low current consumption :
•  Hold,Sniff,Park,Deep sleep Mode
•  3.0V or 1.8V operation
•  Support for up to seven slaves :
•  SCO links<3>,ACL links,Piconet<7>
•  Interface: USB,UART&PCM(for voice CODEC)
•  SPP/DUN firmware are available
•  Support for 802.11 Co-Exsitence
•  RoHS compliant RoHS compliant RoHS compliant RoHS compliant RoHS compliantRoHS compliant
•  Small outline. 14 x 12 x 2 mm

APPLICATIONS:

•  PDA
•  Presenter, Mouse, Keyboard
•  Digital camera & printer
•  GPS,POS, Barcode Reader
•  Data collector
•  Domestic and industrial applications
