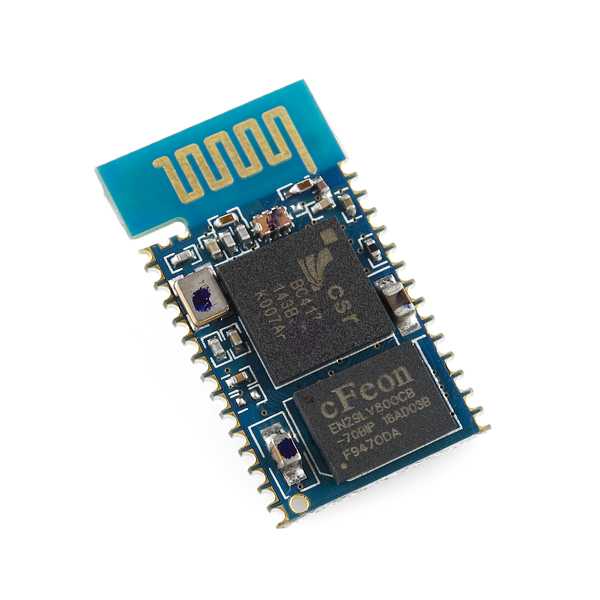

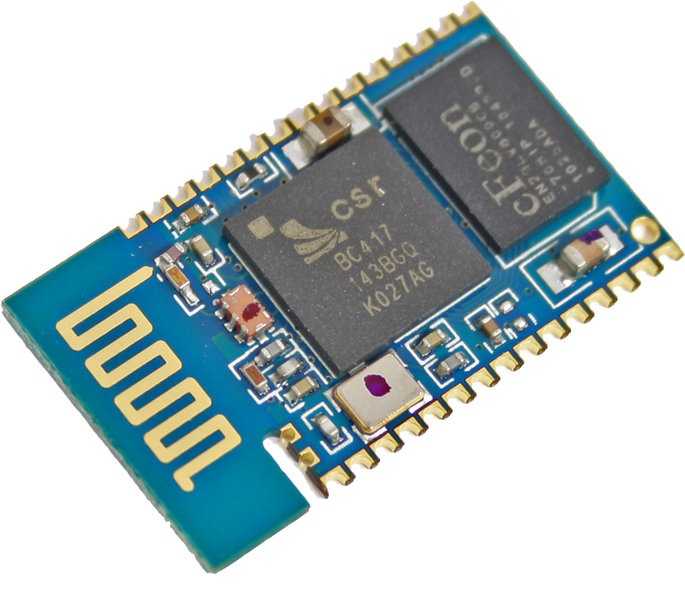

Class2 BC04-ext Module

•  Class2 module with printed pcb antenna
•  Bluetooth standard Ver. 2.0 + EDR compliant.
•  Low current consumption :
•  Hold,Sniff,Park,Deep sleep Mode
•  3.0V or 1.8V operation
•  Support for up to seven slaves :
•  SCO links<3>,ACL links,Piconet<7>
•  Interface: USB,UART&PCM(for voice CODEC)
•  SPP/HID firmware is available
•  Support for 802.11 Co-Exsitence
•  RoHS compliant
•  Small outline. 25.0 x 14.5 x 2.2 mm

APPLICATIONS:

•  PDA
•  Presenter, Mouse, Keyboard
•  Digital camera & printer
•  GPS,POS, Barcode Reader
•  Data collector
•  Domestic and industrial applications
