Product Highlights

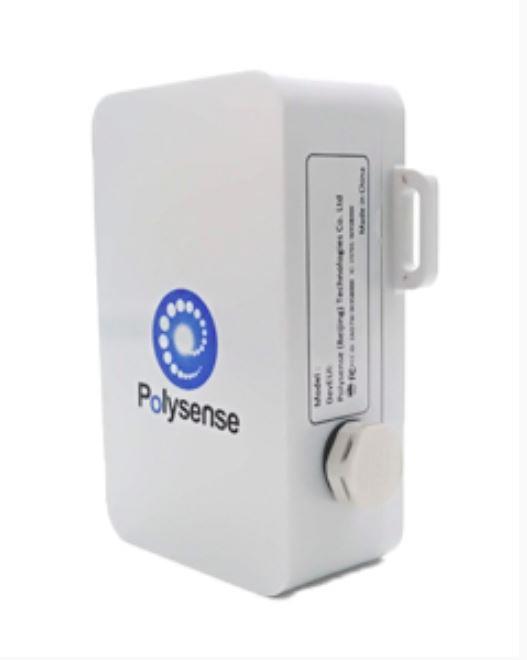

ü CO sensor
ü High sensitivity, high resolution, detection range 0~1000ppm
ü Low power consumption, working voltage 3V, current <5mA
ü Using the environment: - 20 ℃ to 50 ℃; 15% ~ 90% RH
ü Output UART or analog voltage
ü Cross-threshold report, plus periodic report every 2 hours (the threshold and the periodic report cycle are both user-configurable)
ü OTA (Over The Air) firmware upgrade, including to upgrade loader and application images
ü Analog and digital interface for external sensor connectivity and pulse counting (MPI)
ü Low power consumption, 5 – 10 years of battery operational life with 2 x AA Li-SOCI2 Battery
ü Optional DC 5V power source

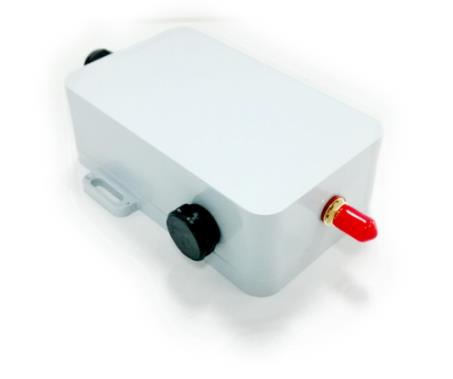

ü Integrated internal antenna, or optional external SMA/IPEX antenna
ü Up to 5km reach in NLoS (Non-Line-of-Sight) and up to 18km LoS (Line-of-Sight) environments
ü IP67 enclosure rating
Specifications
Wireless | |
ISM Band | EU 863 – 870MHz;US 902 – 928MHz China 779 – 787MHz;EU 433MHz AS 923MHz;CN 470 – 510MHz |
Maximum Link Budget | 168dB |
Distance | Up to 5km NLOS; up to 18km LOS |
Antenna | Integrated internal antenna or external 1/2 wavelength whip antenna (SMA) |
Mechanical | |
Dimension | 60mm x 100mm x 30mm (WxS8800) |
IP rating | IP67 (WxS8800) |
Operating Temperature | -40C to +85C (WxS8800); |
Cable length | 0.5 meters |
Total Weight | 120 g |
Electrical | |
Supply Voltage | 3.0 – 3.8 VDC |
Power Type | Replaceable 1 or 2 AA 3.6V Li-SOCI2 Battery; DC 4.5V – 12V optional |
Compliance/Certification | |
![]() | LoRaWAN 1.0.2 |
| FCC(America): 2AO7W-WXS8000, IC(Canada): 23701-WXS8000 ROHS(European Union): R2BJ180927F0664E
|
| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000017959 |
| Tedarikçi Ürün Kodu | : | WxS 880-012 |
