SKYLAB

Dual Band 2.4G+5G, Dual Band USB WiFi Module

Ürün Kodu : WG233E
Yorumlar
717,58 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • DATASHEET

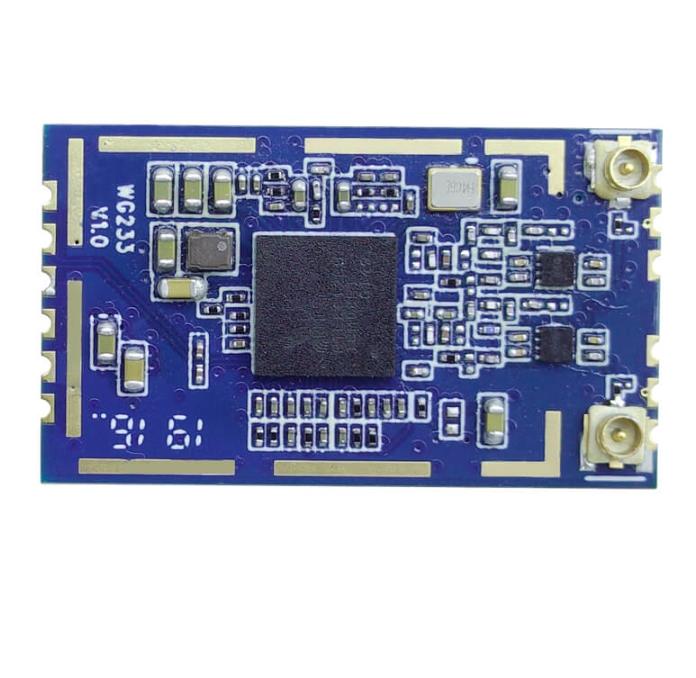

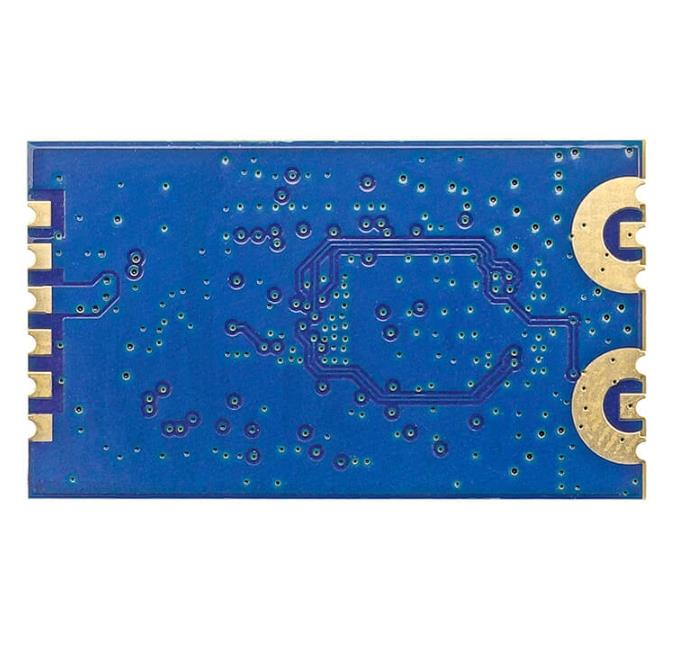

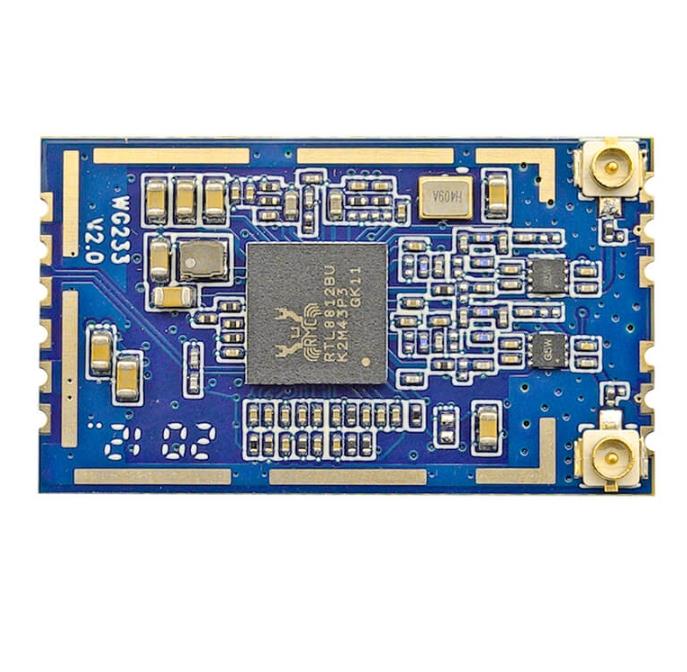

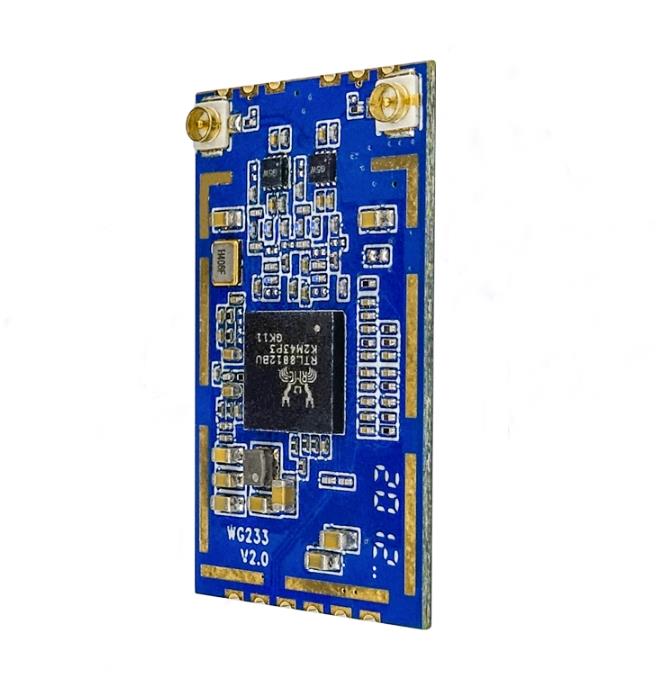

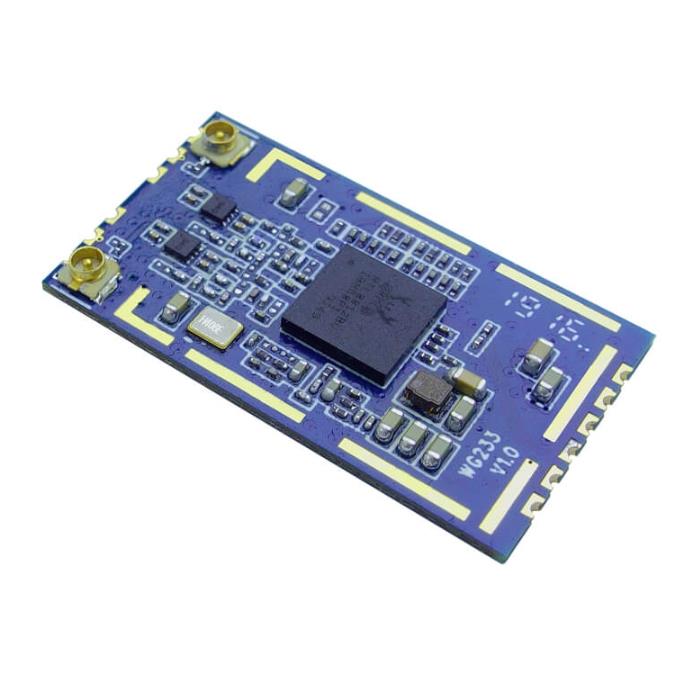

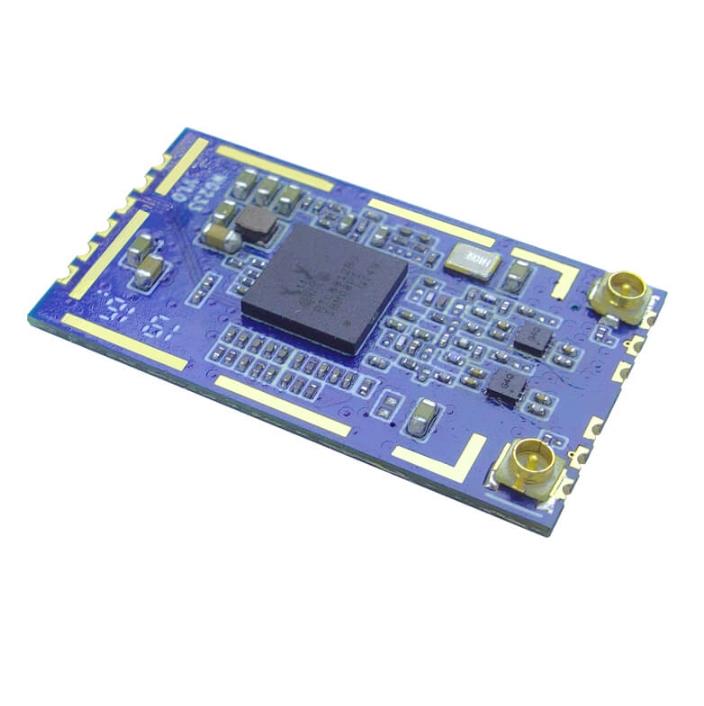

    WG233 is a highly integrated USB Wi-Fi module that supports 867Mbps PHY rate. It is compliant with IEEE 802.11ac draft specification, offering feature-rich wireless connectivity and reliable throughput from an extended distance.

    WG233 is designed to support standard-based features in the areas of security, quality of service and international regulations, giving end-users the greatest performance any time and in any circumstance.



    Feature

    ◆IEEE 802.11a/b/g/n/ac WLANs

    ◆2.4G /5G 2T2R mode

    ◆With support of 867Mbps PHY rate

    ◆IEEE 802.11e QoS Enhancement(WLAN)

    ◆USB LPM/Selective Suspend support

    ◆Fully compliant with USB2.0 High-speed mode.

    ◆IEEE 802.11i(WPA, WPA2). Open, shared key, and pair-wise key authentication services

    ◆Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Linux, Android

    ◆RoHS compliance meets the environment-friendly requirements.

    ◆FCC, CE compliance.

    ◆29.0(L) x 17.0(W) x 2.8mm small dimension.

    Application

    ◆IP Camera

    ◆IP TV

    ◆IP DVD(Internet VOD Player)

    ◆Set Top Box

    ◆Home Gateways

    ◆Gaming Consoles

    ◆DVR





  • T-Soft E-Ticaret Sistemleriyle Hazırlanmıştır.
    Hardware Features
    Model WG233
    Antenna Type IPEX connecter or PCB antenna
    Voltage 3.0-3.6V
    Dimensions  29mm*19mm*2.8mm
    Wireless Features
    Wireless Standards IEEE 802.11 a/b/g/n/ac
    Frequency Range 2.4/5GHz
    Data Rates IEEE 802.11a Standard Mode: 6, 9, 12, 18, 24, 36, 48, 54Mbps
    IEEE 802.11 b Standard Mode: 1, 2, 5.5, 11Mbps
    IEEE 802.11g Standard Mode: 6, 9, 12, 18, 24, 36, 48, 54Mbps
    IEEE 802.11n/Draft 2.0 Mode: 300Mbps @ HT40
    IEEE 802.11ac Standard Mode: 867Mbps @VHT80
    2.4G Receive Sensitivity HT40 MCS15: -69dBm@10% PER(MCS7)
    HT20 MCS15 : -72dBm@10% PER(MCS7)
    54M: -74dBm@10% PER
    11M: -89dBm@ 8% PER
    5G Receive Sensitivity VHT80 MCS15: -59dBm@10% PER(MCS9)
    HT40 MCS15: -68dBm@10% PER(MCS7)
    OFDM 54M: -75dBm@10% PER
    OFDM 6M: -90dBm@ 8% PER
    Modulation Technology 802.11 Legacy b/g/n
    DSSS (DBPSK, DQPSK, CCK)
    OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
    802.11ac
    OFDM (256-QAM)
    Wireless Security Supports WEP64/128, WPA, WPA2, TKIP, WAPI, and AES hardware encryption
    5GHZ Transmit Power IEEE 802.11ac: 9-13dBm @AC80 MCS7
    2.4GHZ Transmit Power


    		 IEEE 802.11n: 14-17dBm @HT40 MCS7 / 14-17dBm@HT20 MCS7
    IEEE 802.11g: 15-17dBm
    IEEE 802.11b: 16-20dBm
