[Frequency] : 433MHz
[Power] : 17/20/30dBm
[Distance] : 1/2/2.5/3/6/8km
[Interface] : RS232/RS485

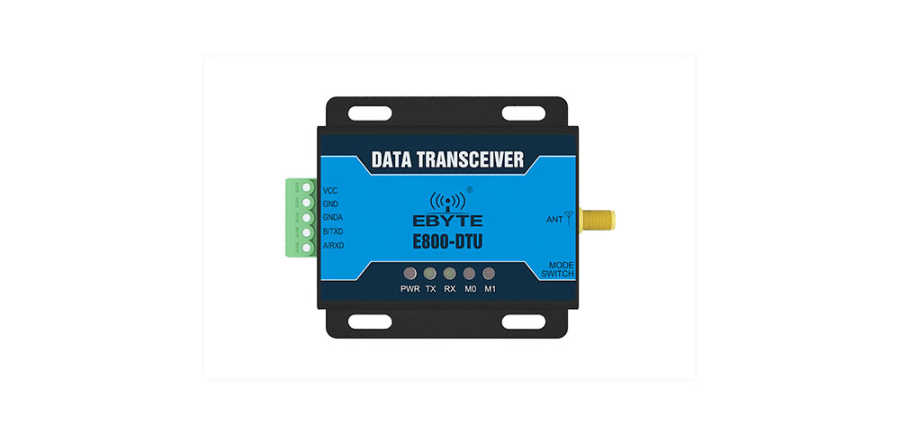

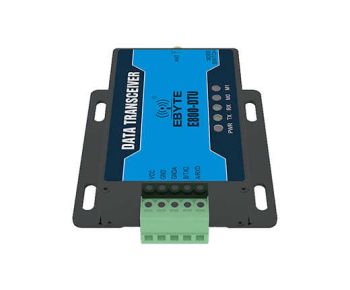

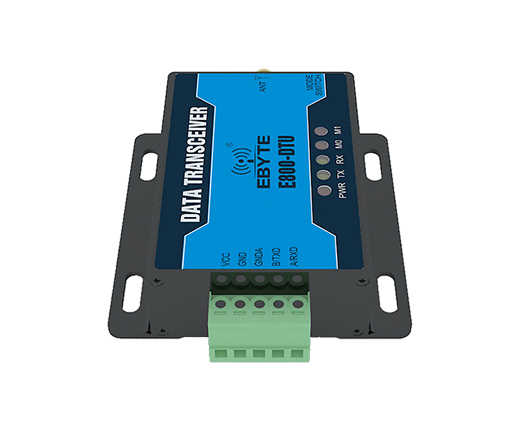

[Introduction] : E800-DTU is a wireless data transceiver with the function of digital data processing, digital modulation and demodulation, FEC, balanced soft decision, etc.. Wireless data transceiver provides transparent RS232 / RS485 interface, different with the analog FM transceiver plus MODEM analog digital transceiver.
PinNumber Name Function Description 1 3.81mm terminal block UART interface/
Power supply interfaceStandard RS-232&485 interface/Screwing power supply interface 2 PWR-LED Power LED Red, lit when the power is on 3 TXD-LED Transmit LED Yellow, blinks when sending data 4 RXD-LED Receive LED Yellow, blinks when sending data 5 M0-LED Mode LED Red,M0 M1 indicate the Operating mode together 6 M1-LED Mode LED Red,M0 M1 indicate the Operating mode together 7 Mode switch Tact switch Control the Operating mode 8 Antenna interface SMA-K interface External thread, 10mm, 50Ωcharacteristic impedance
