Product Highlights

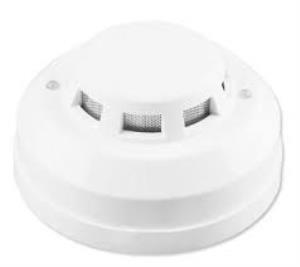

ü Fire smoke sensor
ü Accurate detection, sensitive response, 5 seconds alarm
ü Mhotoelectric sensor, the anti-interference
ü Metal mesh window design, dust, insects
ü Suction mounting
ü Cross-threshold report, plus periodic report every 2 hours (the threshold and the periodic report cycle are both user-configurable)
ü OTA (Over The Air) firmware upgrade, including to upgrade loader and application images
ü Analog and digital interface for external sensor connectivity and pulse counting (MPI)
ü Low power consumption, 5 – 10 years of battery operational life with 2 x AA Li-SOCI2 Battery
ü Optional DC 5V power source
ü Integrated internal antenna, or optional extearnal SMA/IPEX antenna
ü Up to 5km reach in NLoS (Non-Line-of-Sight) and up to 18km LoS (Line-of-Sight) environments
ü IP67 enclosure rating
Specifications

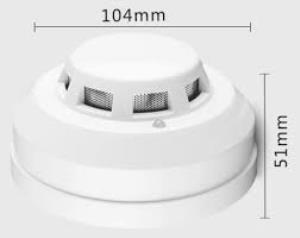

Wireless ISM Band EU 863 – 870MHz;US 902 – 928MHz China 779 – 787MHz;EU 433MHz AS 923MHz;CN 470 – 510MHz Maximum Link Budget 168dB Distance Up to 5km NLOS; up to 18km LOS Antenna Integrated internal antenna or external 1/2 wavelength whip antenna (SMA) Mechanical Dimension 60mm x 100mm x 30mm (WxS8800) IP rating IP67 (WxS8800) Operating Temperature -40C to +85C (WxS8800); Cable length 0.5 meters Total Weight 120 g Electrical Supply Voltage 3.0 – 3.8 VDC Power Type Replaceable 1 or 2 AA 3.6V Li-SOCI2 Battery; DC 4.5V – 12V optional Battery Life 5 – 10 years (assume one motion event one day) Compliance/Certification LoRaWAN 1.0.2 FCC(America): 2AO7W-WXS8000, IC(Canada): 23701-WXS8000 ROHS(European Union): R2BJ180927F0664E .png)

| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000017881 |
| Tedarikçi Ürün Kodu | : | WxS 880-021FS |
