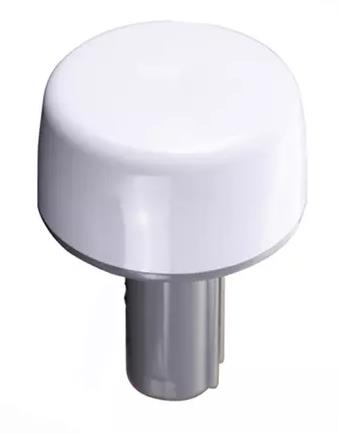

GNSS Active Navigation Antenna, 2m LMR200 cable, SMA/M, Screw mounting

Ürün Kodu : LTE-A-005
Yorumlar
1.239,88 TL + KDV
Stok Durumu:
Var (50 Adet)

Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • SPECIFICATIONS

    Item

    Specifications

    Antenna

    Frequency Range

    1561.098~1575.42MHz

    Band Width

    CF±5MHz

    Polarization

    RHCP

    Gain

    5dBic（Zenith）

    V.S.W.R

    ＜1.5

    Impendance

    50Ω

    LNA

    Gain

    38±2dB

    Noise Figure

    ＜1.5dB

    Supply Voltage

    3~5V DC

    Current Consumption

    ＜40mA

    V.S.W.R

    ＜2.0

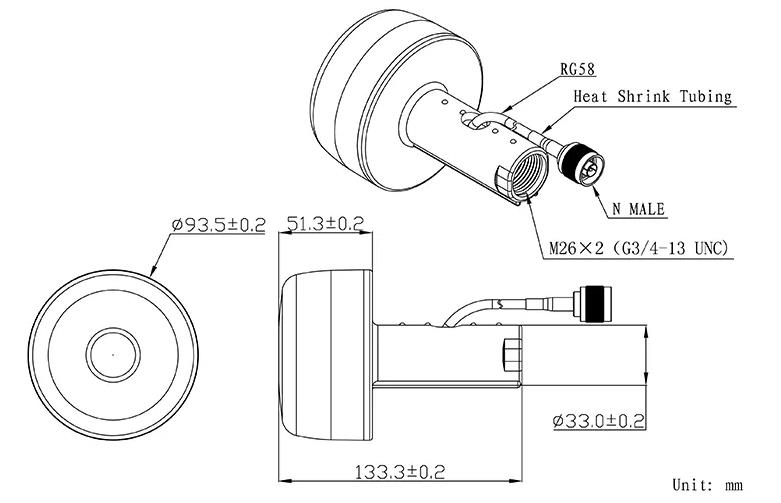

    Mechanical

    Cable

    RG58 or others

    Connector

    N or others

    Radome Material

    ABS

    Mounting Method

    Screw

    Environmental

    Operating Temperature

    -40℃~+85℃

    Relative Humidity

    Up to 95%

    Ingress Protection

    IP67

    Vibration

    10 to 55Hz with 1.5mm amplitude 2hours

    Environmentally Friendly

    ROHS Compliant
