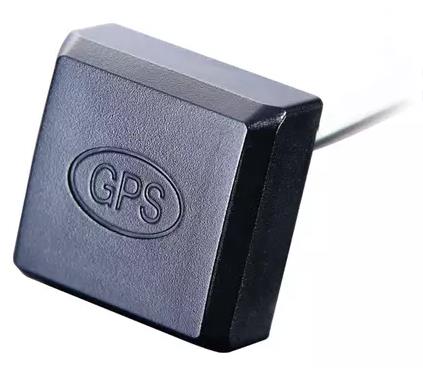

GPS Active Antenna

Product Code : LTE-A-006
Comments
360.40 TL + VAT
Stock Status:
In (4 Piece)

Note
:
Same Day Cargo Same day cargo until 12.30 o'clock
Worldwide Shipment
Next Day Shipment
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Return and Delivery
  • Payment Options
  • Comments (0)
  • Call Me
  • How Will We Ship To You
  • Ek
  • SPECIFICATIONS

    Item

    Specifications

    Antenna

    Center Frequency

    1575.42±3MHz

    Band Width

    CF±5MHz

    Polarization

    RHCP

    Gain

    2dBic（Zenith）

    V.S.W.R

    ＜1.5

    Impedance

    50Ω

    Axial Ratio

    3dB（max）

    Dimension

    25*25*4mm

    LNA

    Gain

    28±2dB

    Noise Figure

    ＜1.5dB

    Supply Voltage

    2.2~5V DC

    Current Consumption

    ＜15mA

    V.S.W.R

    ＜2.0

    Mechanical

    Cable

    RG178

    Connector

    MCX or others

    Radome Material

    ABS

    Mounting Method

    Screw

    Environmental

    Operating Temperature

    -40℃~+85℃

    Relative Humidity

    Up to 95%

    Vibration

    10 to 55Hz with 1.5mm amplitude 2hours

    Environmentally Friendly

    ROHS Compliant
