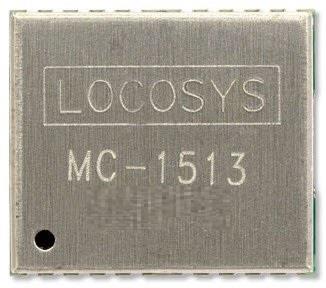

  • LOCOSYS MC-1513

    GPS MODULE





    LOCOSYS S4-1513 GPS module features high sensitivity, low power and ultra small form factor.

    This GPS module is powered by SiRF Star IV, it can provide you with superior sensitivity

    and performance even in urban canyon and dense foliage environment.





    Features

    ·         SiRF Star IV high sensitivity solution

    ·         Support 48-channel GPS

    ·         Fast TTFF at low signal level

    ·         Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)

    ·         Built-in active jammer remover to track up to 8 CW jammers

    ·         Embedded free CGEE technology to get faster location fix

        ·         Micro Power Mode

    ·         MEMS support

    ·         SBAS ranging

    ·         Built-in LNA and SAW filter

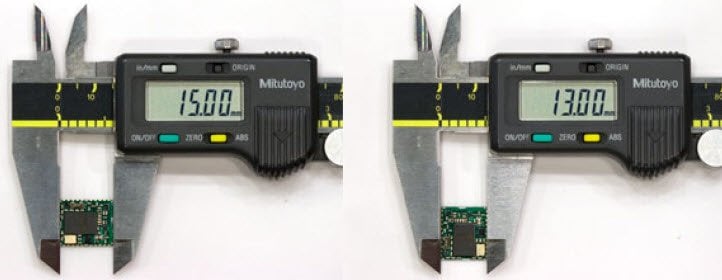

    ·         Small form factor 15 x 13 x 2.2 mm

    ·         SMD type with stamp holes; RoHS compliant



    Application

    ·         Personal positioning and navigation

    ·         Automotive navigation

    ·         Marine navigation





    GPS receiver

    Chip

    SiRF Star IV, GSD4e-9411

    Frequency

    L1 1575.42MHz, C/A code

    Channels

    48

    Update rate

    1Hz

    Sensitivity

    Tracking

    -159.5dBm, up to -163dBm (with external LNA)

    Navigation -156.5dBm, up to -160dBm (with external LNA)

    Cold start

    -144.5dBm, up to -148dBm (with external LNA)

    Acquisition Time

    Hot start (Open Sky)

    < 1s (typical)

    Hot start (Indoor)

    < 15s

    Cold Start (Open Sky)

    32s (typical)

    < 15s (typical), CGEE-start

    Position Accuracy

    Autonomous

    3m (2D RMS)

    SBAS

    2.5m (depends on accuracy of correction data)

    Max. Altitude

    < 18,000 m

    Max. Velocity

    < 515 m/s

    Protocol Support

    NMEA 0183 ver 3.0

    9600 bps (1), 8 data bits, no parity, 1 stop bits (default)
    1Hz: GGA, GLL, GSA, GSV, RMC, VTG

    OSP Binary

    115200 bps, 8 data bits, no parity, 1 stop bits

    Note 1: Both baud rate and output message rate are configurable.
