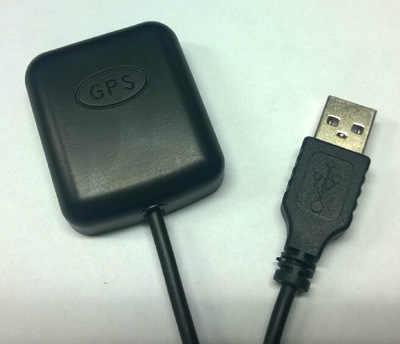

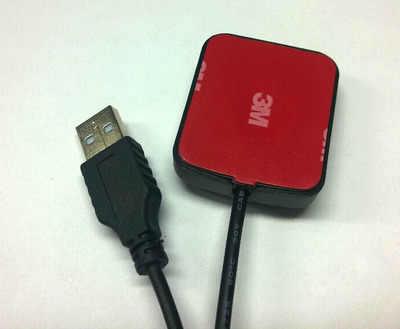

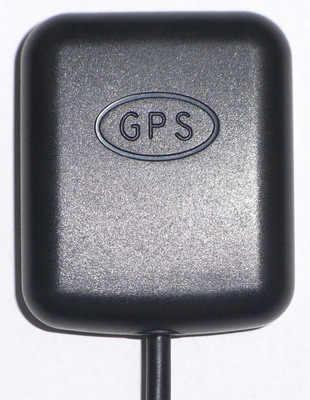

GPS Mouse Mouse UBL M8chipset,4800baud, 3mt USB-A connector with Flash

Ürün Kodu : GUM-4538-UB8FUSB300
Yorumlar
389,05 TL + KDV
Stok Durumu:
Var (143 Adet)
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Features
    n  Build on high performance, low-power
    MediaTek MT3337chip set
    n  Ultra highsensitivity: -165dBm
    n  Extremely fastTTFF at low signal level
    n  Built in high gainLNA
    n  Low powerconsumption:Max45mA@3.3V
    n  NMEA-0183compliant protocol or custom protocol
    n  Operating voltage:3.0V--5.0V
    n  Operatingtemperature range:-40to85℃
    n  Patch AntennaSize: 25x25x4mm
    n  Module Size: 45x38x13mm
    n  Communication type:USB
    n  Baud rate:9600bps
    n  Wire interfacetype: USB (type A) male head,
        L=3750px
    n  RoHS compliant(Lead-free)
    Parameter Specification
    Power Supply          Supply voltage:  3.0V~5.0V   Typical: 3.3V
    Power Consumption          Acquisition:  45mA @VCC=VBAT=3.3V
             Tracking:  40mA  @VCC=VBAT=3.3V
             Backup:  15uA  @VBAT=3.3V
    Receiver Type          Code 56 search channels ,22 synchronous tracking  channels
             GPS&QZSS L1 1575.42MHz C/A ,GLONASS L1OF 1602MHz,
        SBAS: WAAS, EGNOS, MSAS, GAGAN
    Sensitivity          Tracking:    -165dBm
             Re-acquisition:   -156dBm
             Acquisition:    -146dBm
    TTFF (Autonomous)          Cold start:    35s  typ @-130dBm
             Warm start:    30s  typ @-130dBm
             Hot start:    1s   typ @-130dBm
    HorizontalPosition          <2.5m CEP @-130 dBm
    Accuracy (Autonomous)
    Max Update Rate          Up to 10Hz,1Hz by  fault
    Accuracy of 1PPS Signal          not enabled
    Acceleration Accuracy          Without aid: 0.1m/s²
    Dynamic Performance          Maximum altitude:  18,000m
             Maximum velocity:  515m/s
             Acceleration: 4G
    UART Port          UART Port: USB_DM and USB_DP
             Supports baud rate  from 4800bps to 115200bps, 4800bps by default
             USB port for NMEA and MTK output, binary or MTK proper Agreement input
    Temperature Range          Normal operation: -40°C ~ +85°C
             Storage temperature:  -45°C ~ +125°C
    Physical Characteristics          Size:  45±0.20×38±0.20×13±0.50mm
             Weight: Approx. 35g
    Ürün Özellikleri
    FREKANS
    :
    GPS / GNSS Module
