ItemSpecificationsAntennaFrequency Range1575.42~1602MHzPolarizationRHCPGain2dBic(Zenith)V.S.W.R<1.5Impendance50ΩAxial Ratio3dB(min)Dimension25*25*4mmLNAGain28±2dBNoise Figure<1.5dBSupply Voltage2.2~5V DCCurrent Consumption5~15mAV.S.W.R<2.0MechanicalCableRG174 or othersConnectorSMA/MCX/FAKRA or othersRadome MaterialABSMounting MethodScrewEnvironmentalOperating Temperature-40℃~+85℃Relative HumidityUp to 95%Ingress ProtectionIP67 (exclude cable outlet)Vibration10 to 55Hz with 1.5mm amplitude 2hoursEnvironmentally FriendlyROHS Compliant
Item
Specifications
Antenna
Frequency Range
1575.42~1602MHz
Polarization
RHCP
Gain
2dBic(Zenith)
V.S.W.R
<1.5
Impendance
50Ω
Axial Ratio
3dB(min)
Dimension
25*25*4mm
LNA
28±2dB
Noise Figure
<1.5dB
Supply Voltage
2.2~5V DC
Current Consumption
5~15mA
<2.0

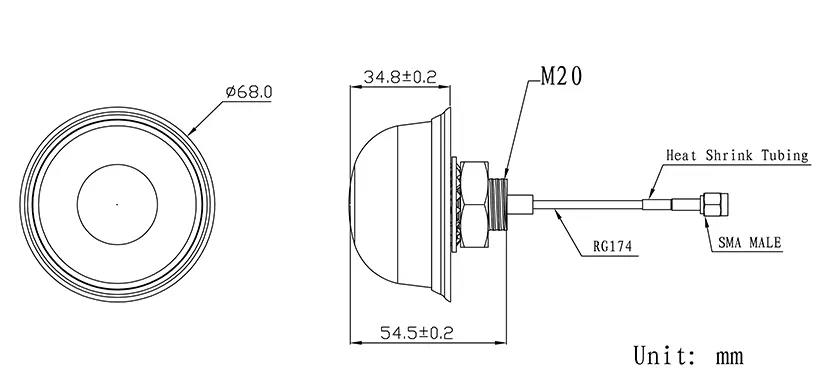

Mechanical
Cable
RG174 or others
Connector
SMA/MCX/FAKRA or others
Radome Material
ABS
Mounting Method
Screw
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Ingress Protection
IP67 (exclude cable outlet)
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
