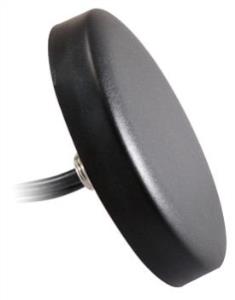

GPS+WIFI(2.4~5GHz) Combo Antenna, RG174/3M, SMA Male, Screw mounting
Ürün Kodu : LTE-B-046W
797,53 TL + KDV
Stok Durumu:
Yok
Not
:
Aynı Gün Kargo
12.30’a kadar aynı gün kargo
Worldwide
Shipment
Next Day
Shipment
Kampanya
{{CMP.TITLE}}
{{CMP.DESCRIPTION}}
- Ürün Özellikleri
- İade ve Teslimat
- Ödeme Seçenekleri
- Yorumlar (0)
- Beni Ara
- Ek
-
Item
Specifications
GPS Antenna
Dielectric Antenna
Center Frequency
1575.42±3MHz
Band Width
CF±5MHz
Polarization
RHCP
Gain
2dBic（Zenith）
V.S.W.R
＜1.5
Impedance
50Ω
Axial Ratio
3dB（max）
LNA
Gain
28±2dB
Noise Figure
＜1.5dB
V.S.W.R
＜2.0
Supply Voltage
2.2~5V DC
Current Consumption
＜15mA
WIFI Antenna
Frequency Range
2400~2483.5MHz/4900~5825MHz
Polarization
Linear
Gain
3dBi
V.S.W.R
＜2.0
Impedance
50Ω

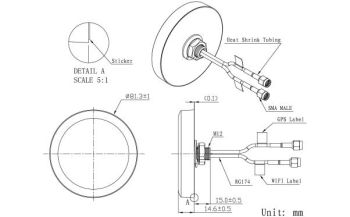

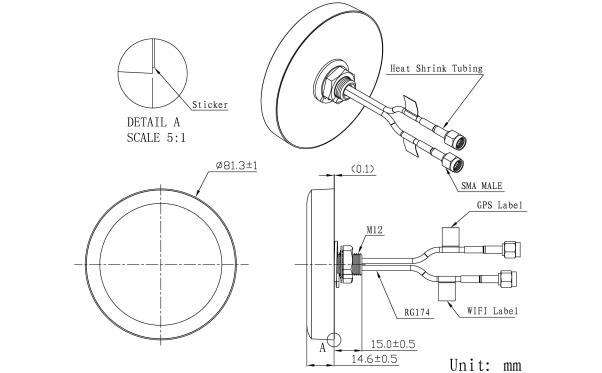

Mechanical
Cable
RG174/3m
Connector
SMA male
Material
ABS
Mounting Method
Screw
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Ingress Protection
IP66 (exclude cable outlet)
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
