| Frequency Range | : | 824~960/1710~2170MHz |
| Polarization | : | Linear |
| Gain | : | 2dBi(Zenith) |
| V.S.W.R | : | <2.5 |
| Impendance | : | 50Ω |
| PCB Dimension | : | --- |
| Cable | : | RG174 / 1,5m |

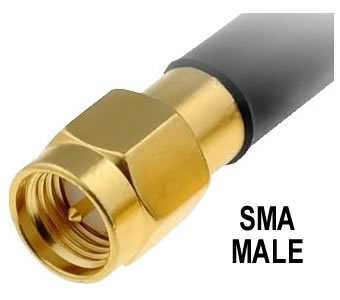

| Connector | : | SMA or others |
| Mounting Method | : | Screw |
| Operating Temperature | : | -40℃~+85℃ |
| Relative Humidity | : | Up to 95% |
| Ingress Protection | : | IP65~IP67 |
| Vibration | : | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly | : | ROHS Compliant |
| Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | LTE-G-003 |
