HELTEC

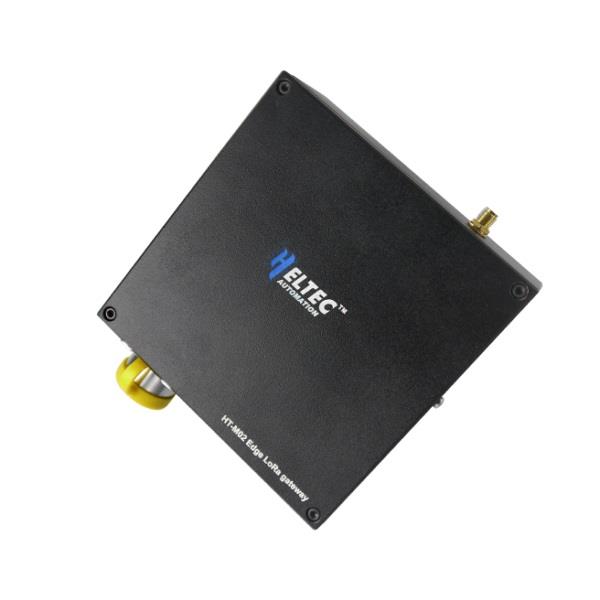

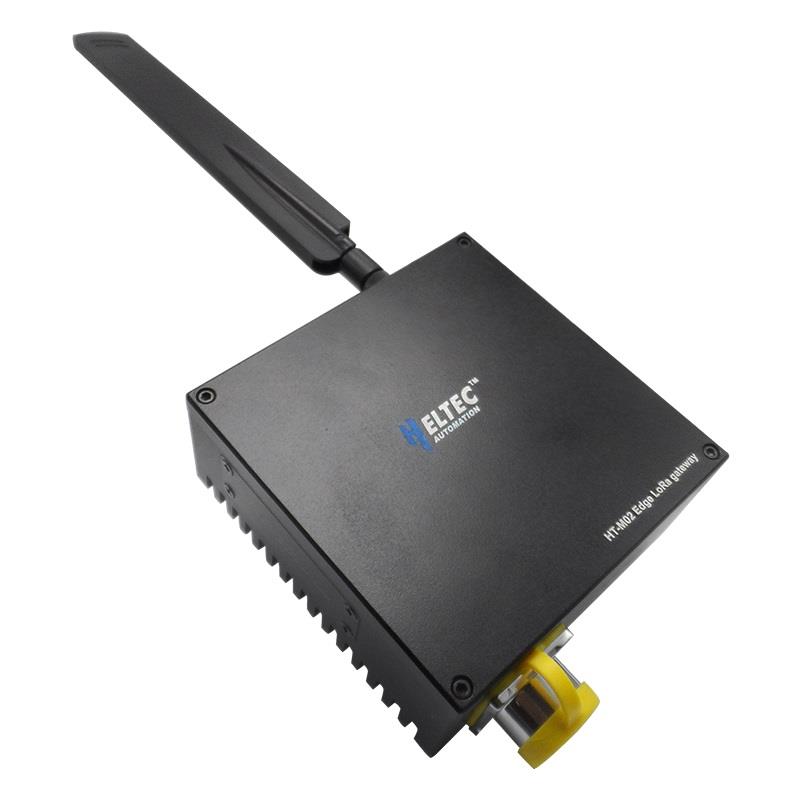

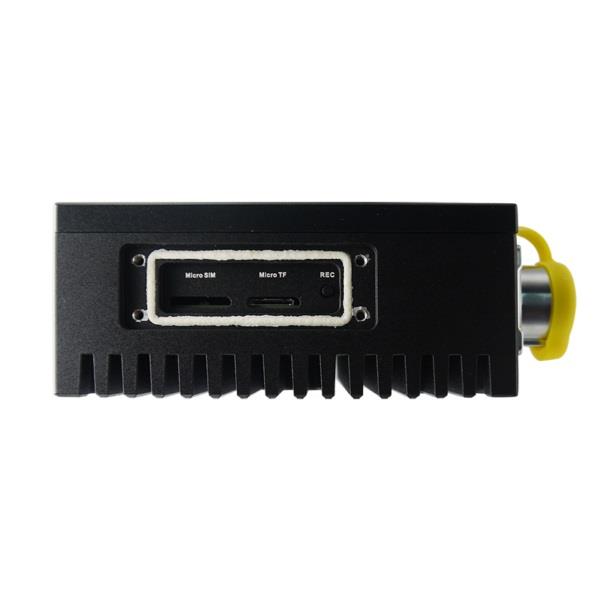

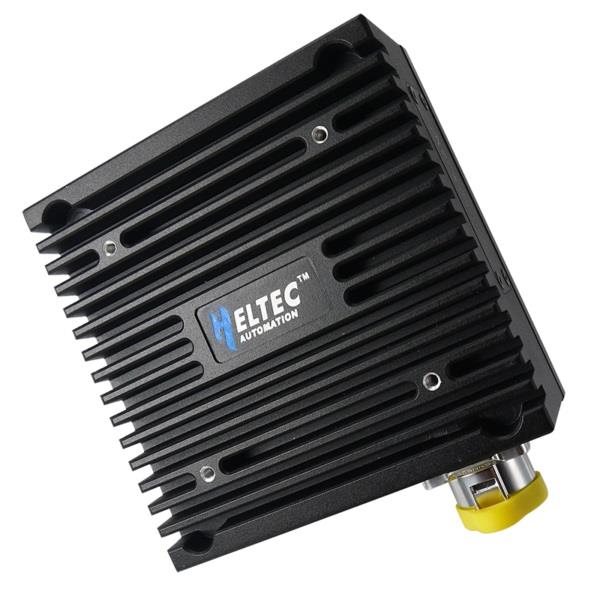

HT-M02 Edge LoRaWan Gateway

Ürün Kodu : HT-M02
Yorumlar
4.779,06 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • HT-M02 Edge LoRa Gateway is a part of the “Heltec LoRa“ series, with the following features:

    • CE & FCC Certificate
    • Integrated Linux Operating System (4.14 Kernel, Debian Stretch 9.8);
    • IP65 waterproofing;
    • No fan or motor heat dissipation structure;
    • 1-GHz Sitara™ ARM® Cortex®-A8 32‑Bit RISC Processor, 512MB DDR3, 4G eMMC;
    • PoE power supply or 110 / 220V AC power supply (110 / 220V AC power supply version use 4G upload LoRa data).
    • SX1301 digital baseband chip
    • Size: 125(+40) x 125 x 52 mm;
    • Emulates 49 LoRa demodulators and 1 FSK demodulator
    • 10 programmable parallel demodulation paths
    • Dynamic data-rate adaptation (ADR)
    • Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
    • Maximum output: 20 ± 1dBm
    • Up to -139dBm sensitivity with SX1257 or SX1255 Tx/Rx front-end
    • Support for LoRaWAN Class A, Class C protocols
    • Through the unique heat conduction device to transfer heat to the aluminum housing, strengthen heat dissipation, make the operation more stable
    • -20°C to 70°C maximum operating temperature range
    • Working bands: Full band coverage corresponding to the working frequency option.



    Technical Parameters


    Electrical characteristics
