Industrial 8-Channel ESP32-S3 WiFi Relay Module Xtensa 32-bit LX7

Ürün Kodu : LTE-WS31130
Yorumlar
2.726,44 TL + KDV
Stok Durumu:
Var (2 Adet)

Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Industrial 8-Channel ESP32-S3 WiFi Relay Module, Onboard isolated RS485 interface, Built-in Xtensa 32-bit LX7 Dual-core Processor, Up To 240MHz, With Multiple Isolation Protection Circuits

    ESP32-S3-ETH-8DI-8RO

    1. ESP32-S3-ETH-8DI-8RO × 1
    2. 2.4G 4DB SMA antenna × 1
    3. Screwdriver × 1
    1ESP32-S3-ETH-8DI-8RO
    2
    3






    Based on ESP32-S3, Supports WiFi / Bluetooth

    Onboard Digital input, RS485, and ethernet port interfaces. Built-in protection circuits such as power isolation and optocoupler isolation, Safe & Stable & Reliable

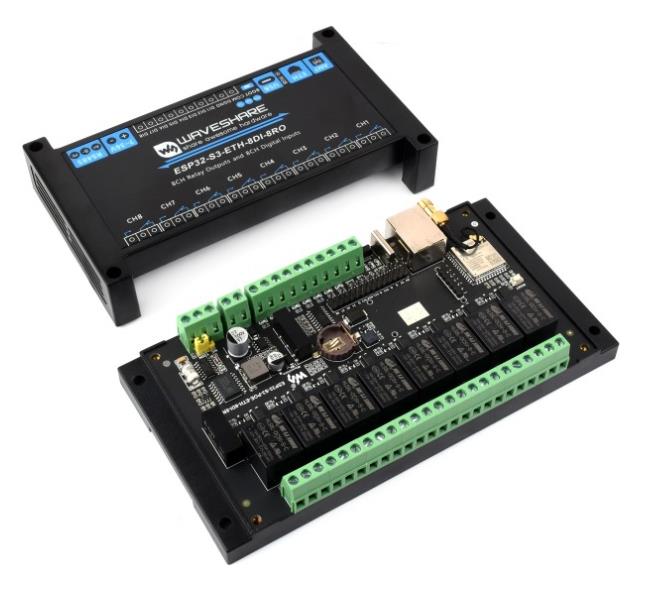

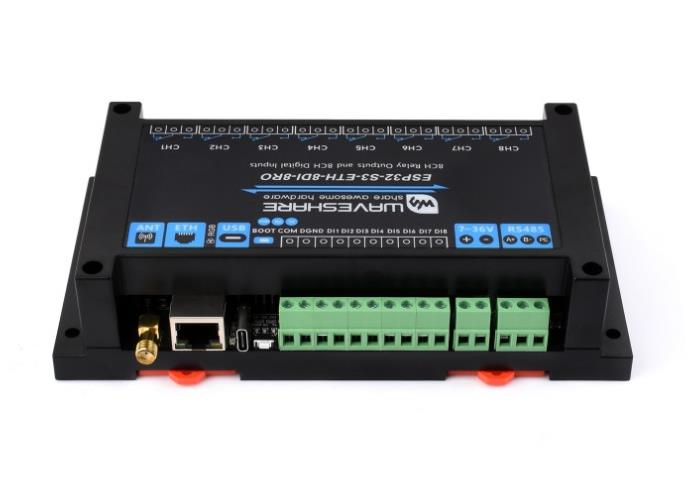

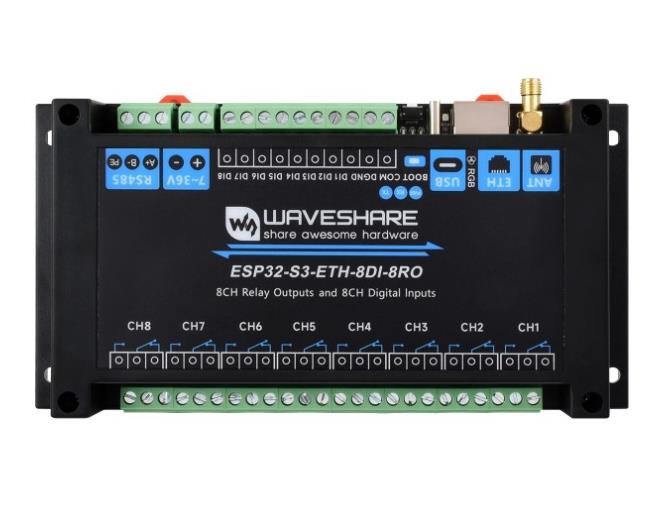

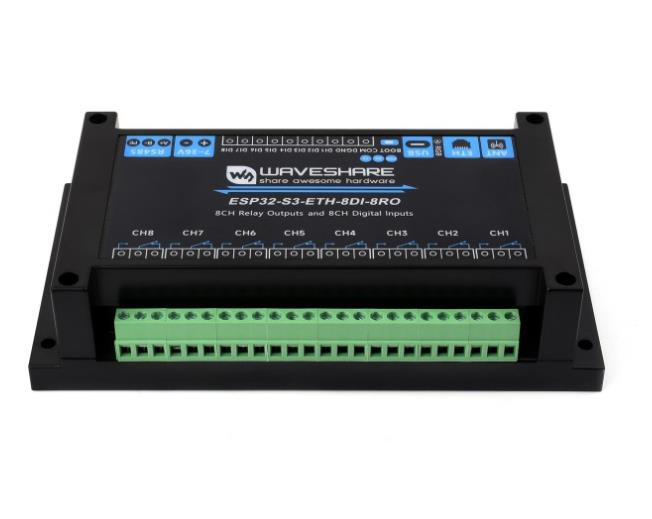

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, front view
    Version options
    ESP32-S3-ETH-8DI-8RO

    ESP32-S3-ETH-8DI-8RO
    Common network port + isolated RS485
    8-ch digital inputs + 8-ch relays


    ESP32-S3-POE-ETH-8DI-8RO

    ESP32-S3-POE-ETH-8DI-8RO
    PoE network port + isolated RS485
    8-ch digital inputs + 8-ch relays

    Features
    • Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
    • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
    • High quality relay, contact rating: ≤10A 250V AC / 30V DC
    • Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control
    • Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
    • Onboard pin header, allowing access to other devices
    • Onboard USB Type-C port for power supply, firmware downloading and debugging
    • Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
    • Onboard RTC chip, supports scheduled tasks
    • Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
    • Optional for PoE network port version, with built-in PoE module for PoE capability (compliant with IEEE 802.3af standard)
    • Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
    • Onboard digital isolation to prevent interference from external signal
    • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
    • Onboard TF card slot for external TF card storage of images and files
    • Built-in buzzer, RGB LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the devices
    • Rail-mounted ABS case, easy to install, safe to use

    Specifications
    Version ESP32-S3-POE-ETH-8DI-8RO ESP32-S3-POE-ETH-8DI-8RO-C
    Microcontroller ESP32-S3 (Default module: ESP32-S3-WROOM-1U-N16R8, customizable for other modules)
    Wireless communicatoin 2.4GHz WiFi (802.11 b/g/n)、Bluetooth 5, BLE
    USB Connector USB Type-C
    Power supply 5V
    Functions Power supply, USB communication, firmware downloading, etc.
    isolated comm interface Interface RS485 CAN
    Connector Screw terminal
    Direction control Hardware automatic control
    Protection TVS diode, surge protection & ESD protection
    Resistor Onboard reserved 120R matching resistor, NC by default, enabled via jumper
    Ethernet interface PoE Ethernet port, supports IEEE 802.3af standard (for PoE port version only)
    Digital input Input channels 8
    Input voltage 5V~36V
    Input type Passive input / active input (NPN or PNP type)
    Isolation type Bi-directional optocoupler isolation
    Relay Contact rating ≤10A 250V AC / 30V DC
    Relay channels 8
    Contact form 1NO 1NC
    Isolation Optocoupler isolation
    LED indicators RGB RGB colorful LED, supports programmable control of display color
    PWR Red power indicator, lights up when there is USB connection and voltage is detected
    TXD Green TX indicator, lights up when the RS485/CAN port sends data
    RXD Blue RX indicator, lights up when the device port sends data back
    power supply Screw terminal Voltage range 7~36V
    Appearance Enclosure Rail-mount ABS protective case
    Dimensions 175 × 90 × 40 (mm)

    Based on ESP32-S3, Designed
    for AIoT market

    Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism; Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, built-in ESP32-S3
    Onboard multiple isolation protection circuits

    Multiple protections, more safe and reliable

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, multiple isolation protection circuits
    supports RS485 and Bluetooth / WIFi remote control

    Onboard 8-ch relays and 8-ch digital inputs
    Contact rating of the onboard relay up to 10A 250V AC / 30V DC
    Directly controlling 220VAC home appliances, or devices below 30V DC

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, AC / DC connection demo

    Digital input

    Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation

    Industrial 8-Channel ESP32-S3 WiFi Relay Module, digital input connection

    Application scenarios
    Industrial 8-Channel ESP32-S3 WiFi Relay Module, linkage control demo

    Wiki: www.waveshare.com/wiki/ESP32-S3-ETH-8DI-8RO
