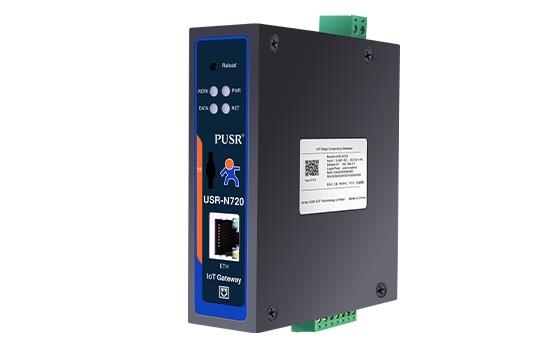

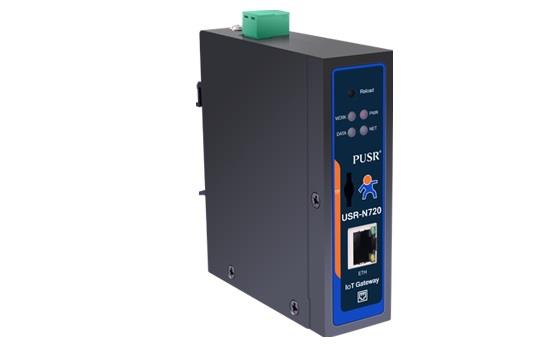

USR-N720-ETH | IoT Edge Gateway2*RS485, Protocol Conversion, Edge Computing, SD CardUSR-N720-ETH is the next generation edge IoT gateway which support edge computing, data acquisiton, protocol conversion and data reporting in json format. It comes with 2 RS485 ports and 1 RJ45 ports which can quickly establish the connection between industrial field equipment and the cloud. With these features, it can be widely used in various fields such as smart factories, smart grid, smart water service and so on.
Key Features- Multiple Interface: Ethernet+2*RS485
- Powerful Edge Computing Capabilities: 1000 points+data acquisition+analysis
- Data Encryption: TCP+SSL, MQTT+SSL
- Protocol Conversion: Modbus to MQTT+Json, DL645 to MQTT+Json
- Rich Communication Protocol: MQTT/TCP
- SD Card for Data Storage：To ensure data integrity
Edge Computing,
Enabling Edge Device Connectivity In The IIOT EraUSR-N720-ETH can collected data in Modbus RTU, Modbus TCP and DL/T645-2007 protocol and reporting data to IoT cloud in JSON format using MQTT or TCP protocol. It supports up to 1000 data points, and can decode and compute the collected data to reduce server’s pressure.
One More Thing, Modbus GatewayConnect to PLC, SCADA system or user’s private server to achieve local or remote motoring.- Modbus RTU to Modbus TCP
- Multi-Host Modbus Polling
Custom Json- JSON message custom conversion
- Supports protocol of various servers and can be used without complicated changes.
Data Encryption, Dual Independent MQTT/TCP
ConnectionsIt support up to 5 connections with different remote survice, including 2*MQTT, 2*TCP and 1*PUSR connection. For MQTT and TCP connections, users can enable SSL encryption to ensure data security.Offline Data Recording on SD CardUSR-N720-ETH supports SD card for data caching, the collected data will be cached tothe SD card when the gateway is in Internet disconnection. And the cached data will be sent to server when the gateway get connection recovery.
Remote Management over PUSR CloudUsers can monitor the running status, upgrade firmware, configure parameters of the N720 remotely, saving users time and cost.High Reliablity Design- Metal Housing: effective cooling.
- Wide Power Input: DC 9-36V.
- Wide Operating Temp: -40℃ ~ +85℃, industrial grade design.
- High EMC Protection: ensuring stable operation in harsh environments.
- Watchdog Protection: Hardware & software dual watchdog to ensure stable operation.
Product Details- Installation: DIN rail mount & wall mount optional
- Dimension: 86*30*98.5 mm
Packing List- 1. USR-N720-ETH*1
- 2. Power Adapter*1
- 3. Power Adapter Cable*1
- 4. Wall Mount Kit*1
Application- Smart Manufacturing
- Smart Building
- Smart Animal Husbandry
- Intelligent Agriculture
- Energy Monitoring
