WAVESHARE

Industrial Isolated USB To RS485/422 Converter, Original FT4232HL Chip

Ürün Kodu : LTE-WS25970
Yorumlar
2.518,53 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • PACKAGE CONTENT

    Weight: 0.23 kg

    1. USB TO 4CH Serial Converter x1
    2. Rail-mount buckle x1
    3. USB Cable ~1.2m x1
    4. Screwdriver x1
    Industrial USB To 4-Ch RS485/422 Converter

    USB To 4-Ch RS485 or USB To 2-Ch RS422 + 2-Ch RS485

    FT4232HL | Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible

    Features At A Glance
    • Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility
    • Supports USB to 4-ch multi-functional serial port, convenient for expanding or debugging various industrial serial port devices
    • Supports USB to 2-ch isolated RS485/422 + 2-ch isolated RS485
    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
    • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
    • Fully automatic transceiver circuit with no delay, ensures fast and stable communication between the USB port and different interfaces, without interfering with each other
    • 9 LEDs for indicating the power and transceiver status
    • High quality USB-B connectors, smoothly plug/pull
    • Industrial grade metal case, supports wall-mount and rail-mount installation, solid and beautiful, easy to install
    Specifications
    PRODUCT TYPE Industrial digital isolated converter
    USB Operating voltage 5V
    Connector USB-B
    Protection 200mA self-recovery fuse, isolated output
    ISOLATED RS485/422 Connector Screw terminal
    Direction control Hardware automatic control
    Protection TVS diode, surge protection & ESD protection, power isolation and signal isolation
    Resistor Onboard reserved 120R matching resistor, NC by default, enabled via jumper
    Transmission mode Point-to-multipoints (485 mode: up to 32 nodes, it is recommended to use repeaters for 16 nodes or more； 422 mode: up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)
    Baud rate 300bps ~ 921600bps
    ISOLATED RS485 Connector Screw terminal
    Direction control Hardware automatic control
    Protection TVS diode, surge protection & ESD protection, power isolation and signal isolation
    Resistor Onboard reserved 120R matching resistor, NC by default, enabled via jumper
    Transmission mode Point-to-multipoints (485 mode up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
    Baud rate 300bps ~ 921600bps
    INDICATORS PWR Red power indicator, light up when there is USB connection and voltage is detected
    TX1~TX4 TX indicator, light up when the USB port sends data
    RX1~RX4 RX indicator, light up when the device ports send data back
    OPERATING ENVIRONMENT Temperature range -15 ~ 70℃
    OPERATING SYSTEM Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7

    Basic Function

    Supports USB To 4-Ch Multi-Functional Serial Port, Convenient For Expanding Or Debugging Various Industrial Serial Port Devices; Supports USB To 2-Ch Isolated RS485/422 + 2-Ch Isolated RS485

    Safer Isolated Design
    • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
    • Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
    Multi System Support

    Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.

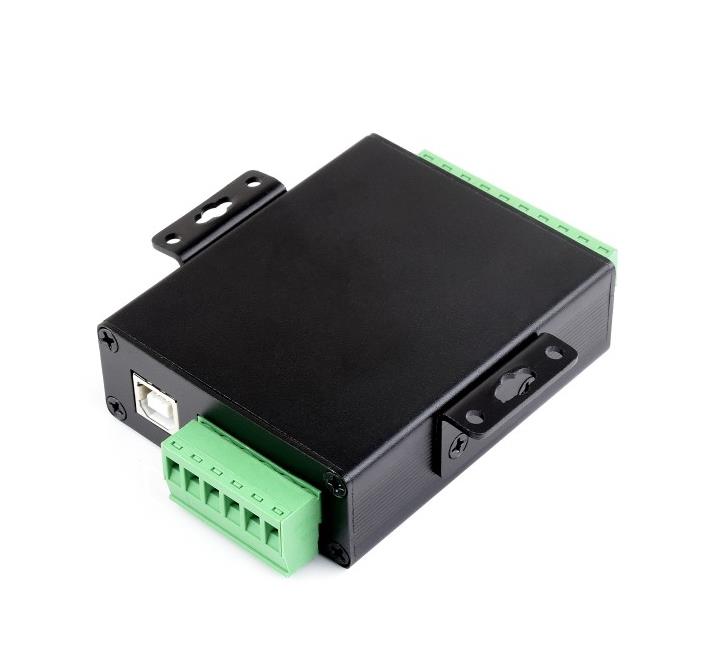

    Aluminium Alloy Enclosure

    Aluminium Alloy Enclosure With Sand Blasting And Anodic Oxidation,
    Solid And Durable; Wall-Mount & Rail-Mount Support, More Flexible For Industrial Installation

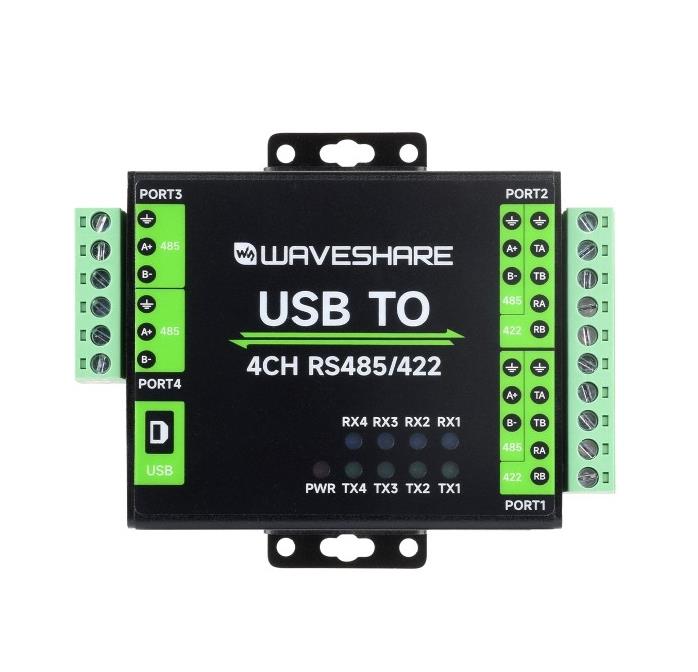

    Pin Definition

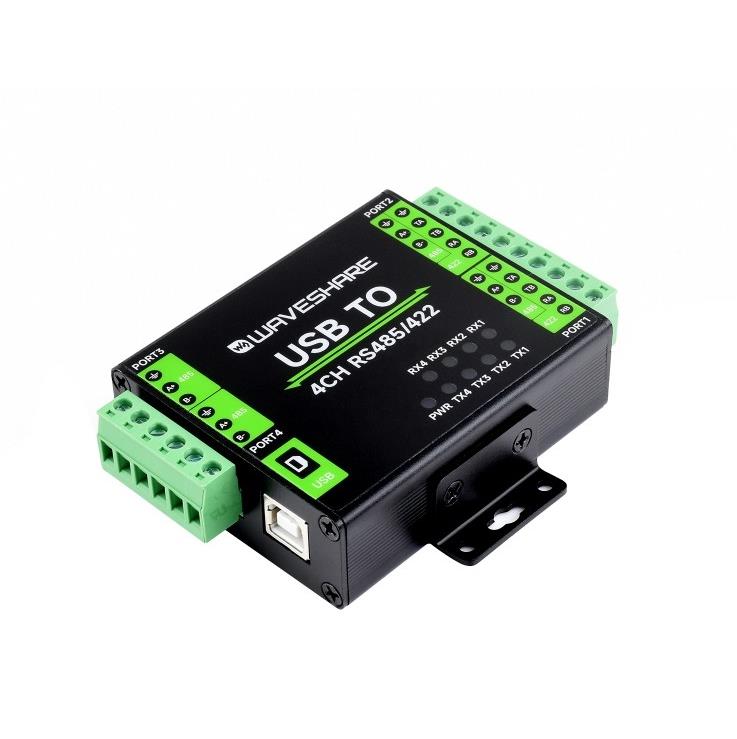

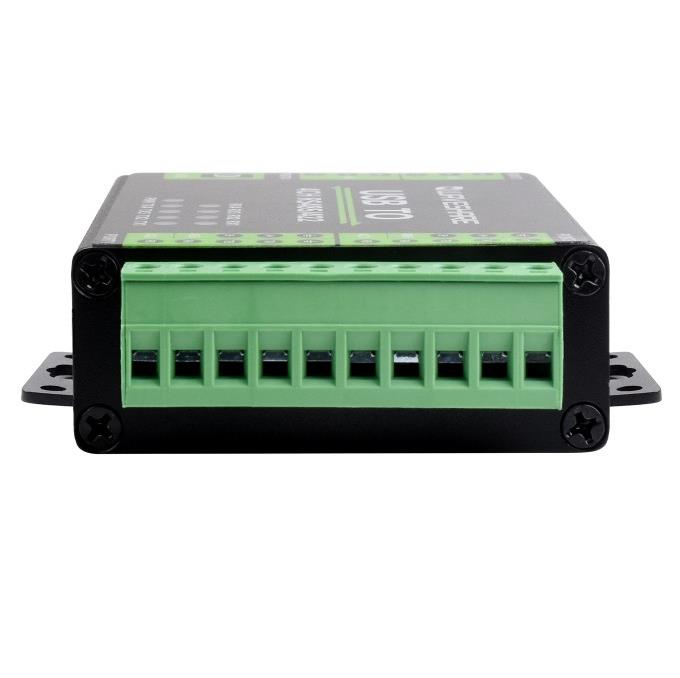

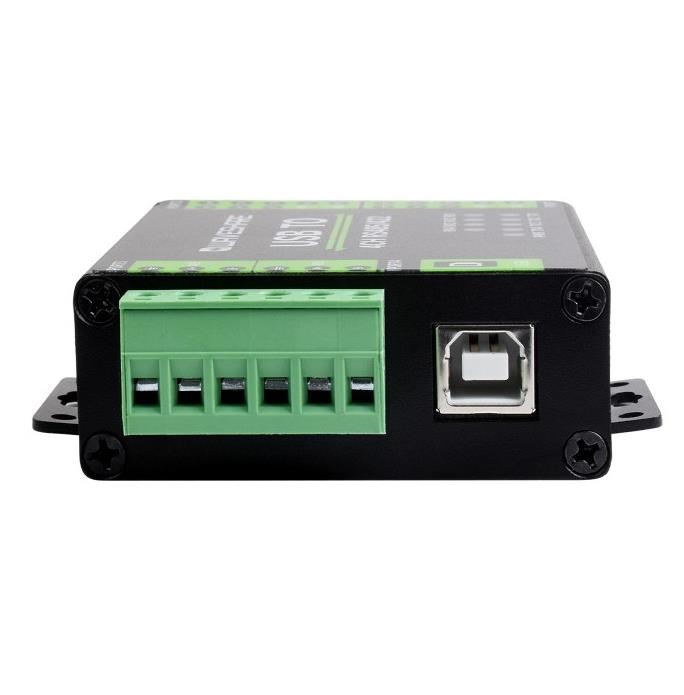

    Product Show
    Outline Dimensions
