  • Industrial USB TO TTL (D) Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Separated 4pin Header + SH1.0 3PIN Connector, Suitable For Raspberry Pi 5 Serial Port Debugging

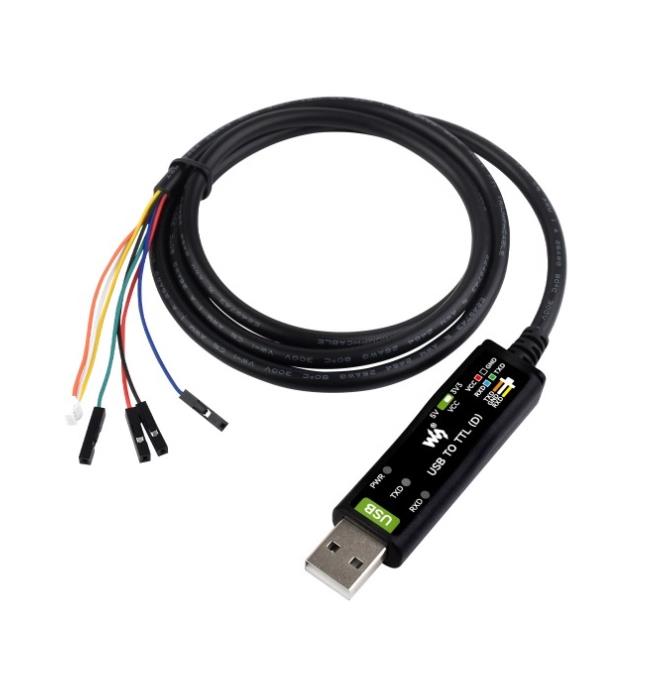

    Industrial USB to TTL serial cable Type D

    Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems

    Suitable for serial port debugging of industrial equipments, supports Raspberry Pi 5



    Industrial USB TO TTL serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipments and can be directly connected to the Raspberry Pi 5.


    Specifications
    Product category Industrial USB TO TTL serial cable
    Chip scheme FTDI original FT232RNL
    Host port USB
    Data rate 300bps ~ 3Mbps
    Device Port UART
    USB port Connector: USB-A
    Protection: self-recovery fuse, ESD protection
    UART port Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector
    Protection: IO protection diode
    Indicator PWR: power indicator, turns on when there is USB connection and voltage is detected
    TXD: TX indicator, turns on while the USB port is sending data
    RXD: RX indicator, turns on while the device port is sending data back
    Cable Black, PVC sheath, total length 1m

    Onboard Original Chips

    Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility

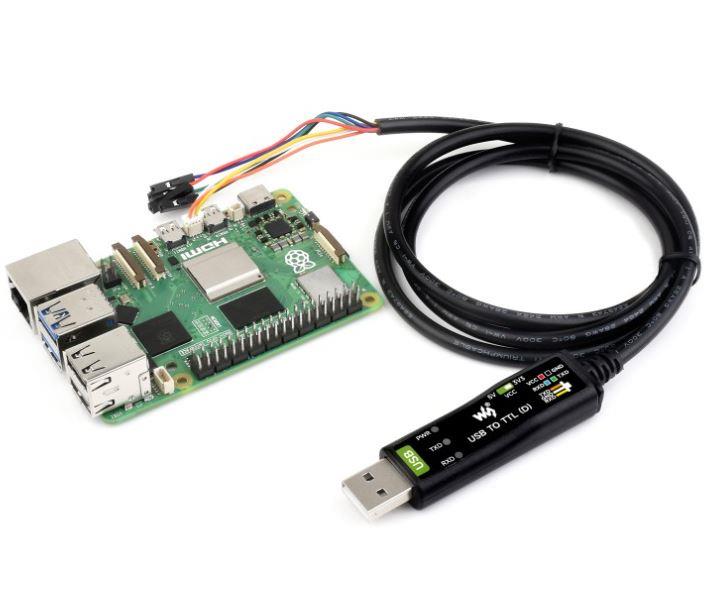

    Raspberry Pi UART debugging

    Suitable for Raspberry Pi, supports multiple Connection Methods


    Connect to PI5 UART Debug Connector Via SH1.0 3PIN cable



    Connect To Raspberry Pi 40PIN GPIO UART Interface Via Separated 4PIN Header



    for reference only, the Raspberry Pi 5 is not included.


    Multiple systems support

    Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...

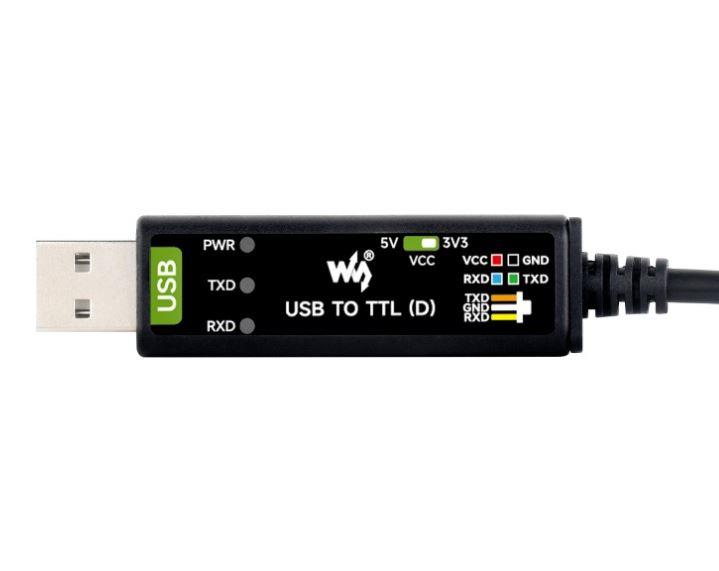

    Three LED Indicators

    Easily checking the operating status, convenient for programming / debugging


    Pinouts Definition
    VCC 3.3V or 5V output, configured by switch
    GND Ground
    TXD Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX)
    RXD Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX)

    Outline dimensions

    * The above dimensions are measured manually and may have some errors


    Resources & Services
    Wiki: www.waveshare.com/wiki/USB_TO_TTL_(D)
