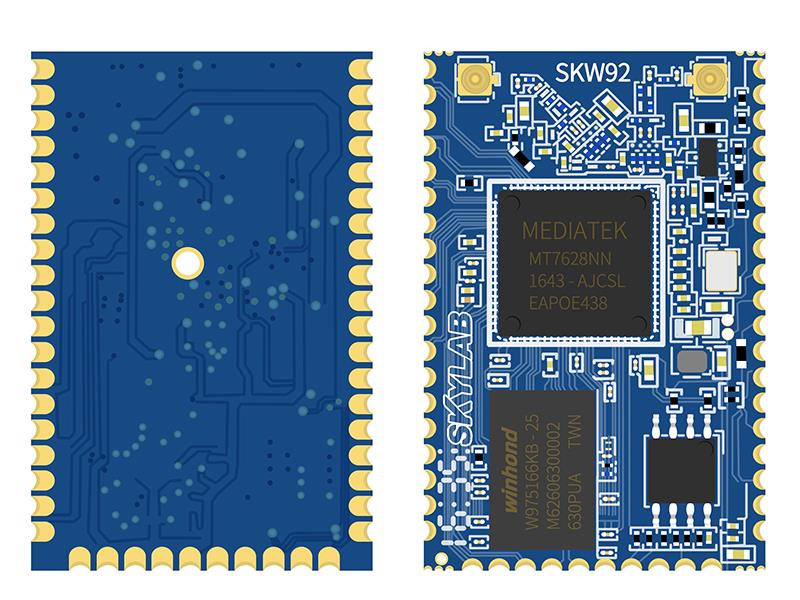

IoT wireless OpenWRT MT7628 wifi module SPI: 256MB(32MB) DDR2:512M

Product code : SKW92A_E325
Comments
Share:
Alarm Price
1.514,08 TL + VAT
Features
1.Compliant to IEEE 802.11b/g/n
2.2T2R mode with support for a 300Mbps PHY data rate
3.DDR2 memory up to 512Mb
4.Flash memory up to 128Mb
5.4 LAN ports and 1 WAN port
6.Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera
7.Support SD card
8.Support interface: I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO
9.Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
10.Support AP/Client/Router mode
11.RoHS compliance meets environment-friendly requirement
12. FCC/CE certificates
13.40.5mm(L) x 25mm(W) x 3.0mm(H) dimension
Hardware Features
Model
SKW92A
Antenna Type
IPEX
Chipset solution
MT7628N
Voltage
3.3V±5%
Dimension(L×W×H)
40.5mm*25.0mm*3.0mm
Wireless Features
Wireless Standards
IEEE 802.11b/g/n
Frequency Range
2412GHz—24884MHz
Data Rates
IEEE 802.11b: 1,2,5.5,11Mbps
IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps
IEEE 802.11n: MCS0–MCS7 @ HT20
MCS0–MCS7 @ HT40
Receiver Sensitivity
HT40 MCS7:   -70dBm@10% PER(MCS7)
HT20 MCS7:   -73dBm@10% PER(MCS7)
54M:   -77dBm@10% PER
11M:   -89dBm@ 8% PER
Modulation Technique
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Wireless Security
WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI
Transmit Power
IEEE 802.11n:    16dBm @HT20/40 MCS7
IEEE 802.11g:    16dBm @54MHz
IEEE 802.11b:    18dBm @11MHz
Work Mode
Bridge/Gateway/AP Client
Others
Certification
RoHS
Environment
Operating Temperature: -20℃~55℃
Storage Temperature: -40℃~125℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Applications
1.USB WiFi Camera   2. IOT (internet of things)   3.WiFi AP   4.3G/4G WiFi Router   5. WiFi Repeater       6.Building Automation   7.Home Automation    8. Smart Home Gateway   9.Industry Control
