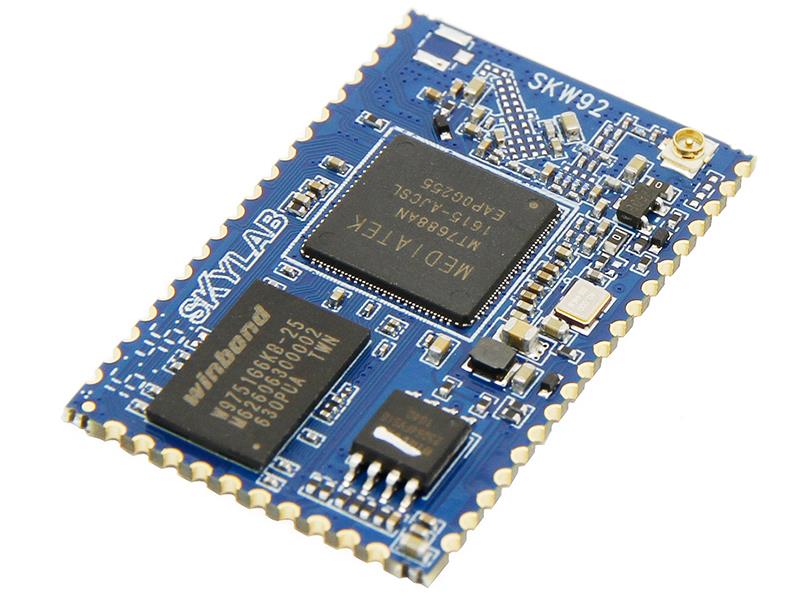

IoT wireless OpenWRT MT7688 wifi module SPI: 256(32MB) DDR2:512M

Product code : SKW92B_E325
Comments
Share:
Alarm Price
1.413,14 TL + VAT
Applications
of wireless
networking equipment
1. IoT (internet of things)
2. 3G/4G WiFi Router
3. USB WiFi Camera
4. Building Automation
5. Home Automation
6. Smart Home Gateway
7. Smart Lighting
8. Smart Plug
9. Industry Control
Feature
1. Compliant to IEEE 802.11b/g/n.
2. 1T1R 2.4GHz with support for a 150Mbps PHY data rate.
3. DDR2 memory up to 1024Mb.
4. Flash memory up to 526Mb.
5. 4 LAN ports and 1 WAN port.
6. Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera.
7. 24 STA-Proxy.
8. Support interface: SD-XC, I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO.
9. Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI.
10. Support IoT gateway mode and IoT device mode .
11. RoHS compliance meets environment-friendly requirement.
12. Conform to FCC/CE/IC/RoHS certification standards.
13. 40.5mm(L) x 25mm(W) x 3.0mm(H) dimension.
Hardware Features
Model
SKW92B
Antenna Type
IPEX
Chipset solution
MT7688A
Voltage
3.3V±5%
Dimension(L×W×H)
40.5mm*25.0mm*3.0mm
Wireless Features
Wireless Standards
IEEE 802.11b/g/n
Frequency Range
2412GHz—24884MHz
Data Rates
IEEE 802.11b: 1,2,5.5,11Mbps
IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps
IEEE 802.11n: MCS0–MCS7 @ HT20
MCS0–MCS7 @ HT40
Receiver Sensitivity
HT40 MCS7:   -70dBm@10% PER(MCS7)
HT20 MCS7:   -73dBm@10% PER(MCS7)
54M:   -77dBm@10% PER
11M:   -89dBm@ 8% PER
Modulation Technique
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Wireless Security
WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI
Transmit Power
IEEE 802.11n:    16dBm @HT20/40 MCS7
IEEE 802.11g:    16dBm @54MHz
IEEE 802.11b:    18dBm @11MHz
Work Mode
IOT Gateway/IOT Device
Others
Certification
RoHS
Environment
Operating Temperature: -20℃~55℃
Storage Temperature: -40℃~125℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
