WAVESHARE

JETSON-NANO-LITE-DEV-KITA-EU

Ürün Kodu : LTE-WS23668
Yorumlar
10.486,33 TL + KDV
Stok Durumu:
Var (2 Adet)

Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

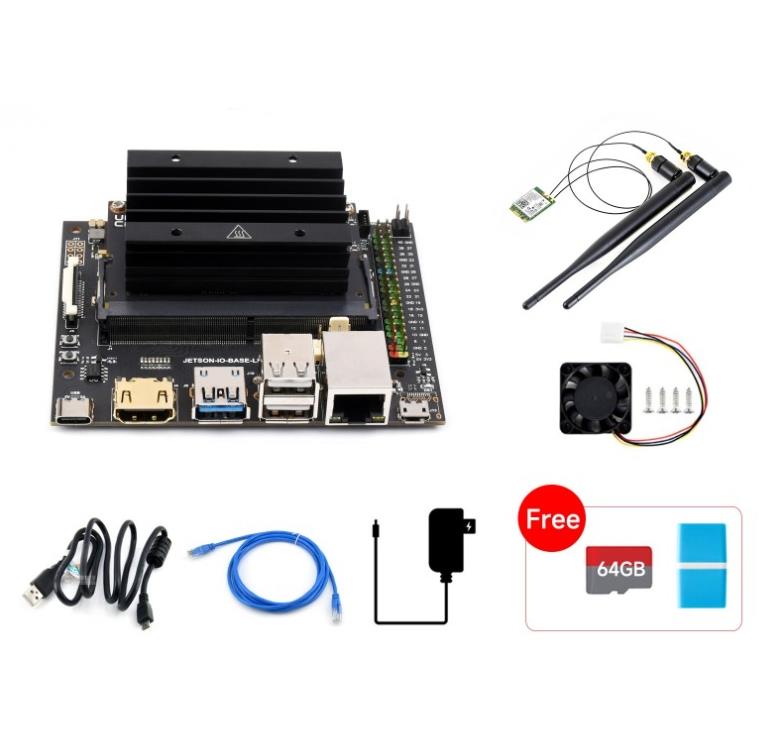

  • JETSON-NANO-LITE-DEV-KIT-A

    1. JETSON-NANO-LITE-DEV-KIT (carrier + Nano + heatsink)
    2. AC8265 dual-mode NIC
    3. Cooling fan
    4. USB cable (~1.2m)
    5. Ethernet cable (~1.5m)
    6. OPTIONS 5V 3A power adapter
    7. 64GB TF Card
    8. Card reader
    JETSON-NANO-LITE-DEV-KIT

    Waveshare Jetson Nano Development Kit



    Based on Jetson Nano Module (with 16GB eMMC), it provides almost the same size and thickness as N-VIDIA Jetson Nano 2GB Developer Kit. Compared with the JETSON-NANO-DEV-KIT, the peripheral interfaces are less but the performance of the core module remains the same, which is suitable for the scenarios that require less interfaces, more cost-effective.

    Carrier Board Comparison

    Model
    JETSON-IO-BASE-A
    JETSON-IO-BASE-LITE
    USB Port 4 × USB 3.2 Gen 1 Type A
    1 × USB 2.0 Micro-B    		 1 × USB 3.2 Gen 1 Type A
    2 × USB 2.0 Type A
    1 × USB 2.0 Micro-B
    Gigabit Ethernet Port √ √
    HDMI Port √ √
    DP Port √ -
    CSI connector × 2 × 1
    Power Port DC USB Type-C
    Button - Power: PWR BTN
    Specification
    GPU 128-core Maxwell
    CPU Quad-core ARM A57 @ 1.43 GHz
    Memory 4 GB 64-bit LPDDR4 25.6 GB/s
    Storage 16GB eMMC + 64GB TF Card
    Video Encoder 250 MP/s
    1x 4K @ 30 [HEVC]
    2x 1080p @ 60 [HEVC]
    4x 1080p @ 30 [HEVC]
    Video Decoder 500 MP/s
    1x 4K @ 60 [HEVC]
    2x 4K @ 30 [HEVC]
    4x 1080p @ 60 [HEVC]
    8x 1080p @ 30 [HEVC]
    Camera 1x MIPI CSI-2 D-PHY lanes
    Connectivity Gigabit Ethernet, M.2 Key E expansion connector
    Display HDMI
    USB 1 × USB 3.2 Gen 1 Type A, 2 × USB 2.0 Type A,
    1 × USB 2.0 Micro-B
    Extension Interfaces GPIO, I2C, I2S, SPI, UART
    Dimensions 100 × 80 × 29mm

    Compatible with Jetson Nano Module
    connect to CSI camera

    Supports CSI camera for AI applications such as face recognition, road sign recognition and license plate recognition

    4K High Definition output

    Support HDMI High-definition Port

    3× USB ports

    1× USB 3.2 Gen 1 + 2× USB 2.0

    USB 3.2 Gen 1 port for high speed data transmission


    color-coded 40PIN GPIO header

    color-coded header pins with clear labels, handy for use

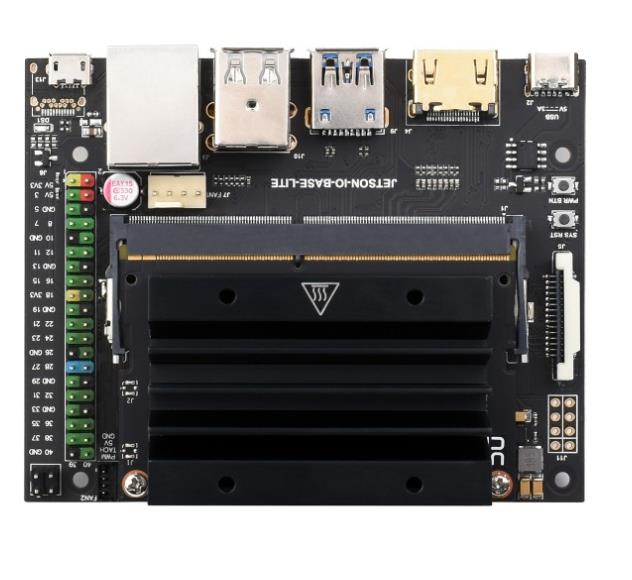

    Introduction
    1. Core module socket
    2. TF card slot
    3. M.2 Key E connector
    4. 1.25mm Fan header
    5. PoE pins
      PoE module is not included
    6. 40PIN GPIO header
    7. 2.54mm Fan header
    8. Micro USB port
      for USB data transmission
    9. Gigabit Ethernet port
      10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected

    1. 2× USB 2.0 port
    2. 1× USB 3.2 Gen 1 port
    3. HDMI port
    4. USB Type-C
      for 5V 3A power input
    5. PWR BTN
      Power Button
    6. SYS RST
      Reset button
    7. MIPI CSI camera connector
    Outline dimensions
