  • This product is the base board only. Please purchase the Orin Module separately.

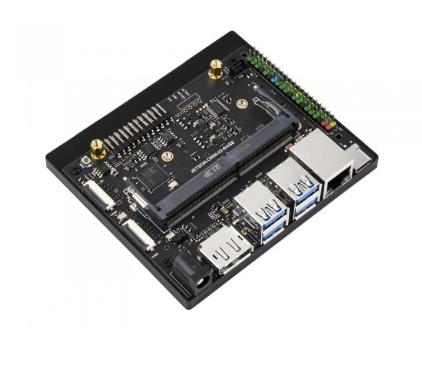

    Jetson Orin Nano/NX AI Base Board, Waveshare Orin Nano/NX Base Board Based on Jetson Orin Nano and Jetson Orin NX module
    JETSON-ORIN-IO-BASE

    Waveshare Jetson Orin Nano/NX Base Board



    Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.

    Compatible with Orin Module

    Supports connecting to N-VIDIA Jetson Orin Nano module and Jetson Orin NX module


    connect to CSI camera

    1× 4-Lane/2-Lane + 1× 2-Lane CSI camera ports for AI applications such as face recognition, road sign recognition and license plate recognition

    * Note: the adapter cable is required for connecting the camera.


    5× USB ports

    4× Tyep-A + 1× Tyep-C

    Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, and the Type-C port can be used for system burning



    4K High Definition output

    Supports DP High-definition Port


    color-coded 40PIN GPIO header

    color-coded header pins to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.


    Flexible storage and wireless expansion

    Onboard 2× M.2 Key M ports for easy connecting Solid State Drives and 1× M.2 Key E interface for connecting wireless NIC, which can reduce cable connection

    * for reference only, the Solid State Drive and wireless network card are NOT included.


    Onboard resource
    1. 260PIN DO-DIMM socket
      for connecting Jetson Orin Nano/NX module
    2. 12PIN header
      Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable and power indicator functions
    3. Power button
    4. 2× 22PIN CSI camera connectors
    5. DC Power jack
      Supports wide range 9V~19V power supply, compatible with 5.5 × 2.5mm male plug
    6. DisplayPort connector
      Supports 4K display
    7. 4× USB 3.2 Gen2 Type A ports
      Supports up to 10Gbps data transmission

    1. RJ45 Gigabit Ethernet port
    2. USB Type-C Interface
      for system burning and data communication
    3. 40PIN header
    4. 4PIN PWM fan header
    5. M.2 Key E
      for connecting wireless NIC
    6. 2x M.2 Key M
      for connecting NVME solid state drives
    7. RTC backup battery header
      PH1.25 2P

    Product show

    * for reference only, the Orin module and cooling fan are NOT included.

    Outline dimensions
