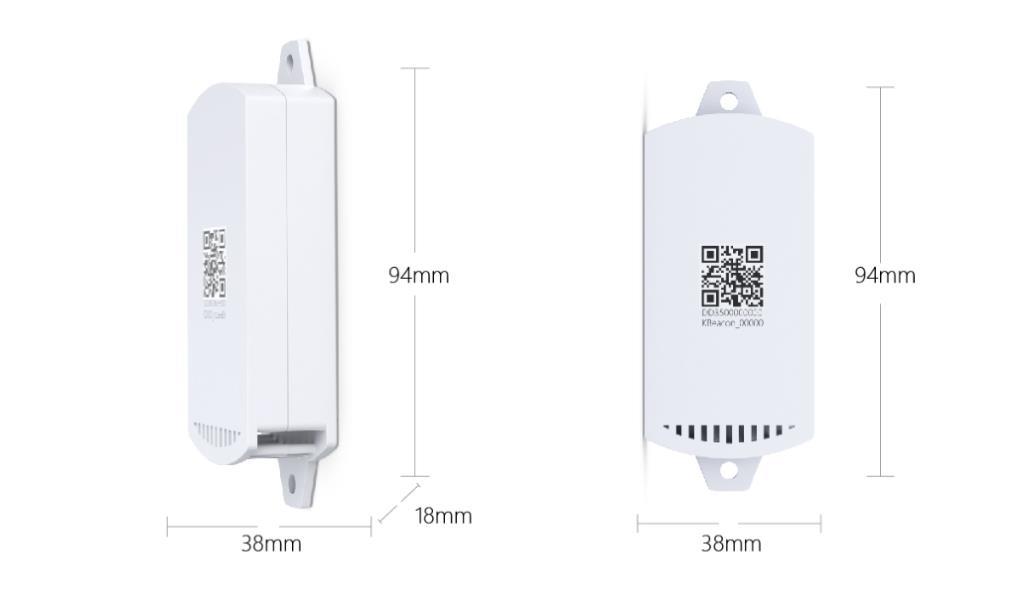

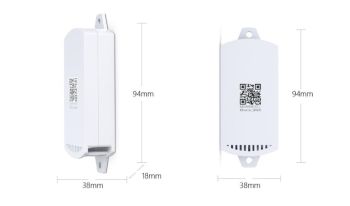

SPECIFICATIONS Material for shell ABS Color Black, White(Other colors can be customized) Size 94mm*38mm*18mm Weight 42g Accessory N/A Battery 3.6V 2600mAh ER14505 Lithium battery Battery life Up to 8 year (Base on Broadcast Interval 1s and TX power 0dBm) Waterproof level IP63 Main Features Support Protocol ◆Apple iBeacon ◆Eddystone URL ◆Eddystone UID ◆Eddystone TLM ◆Ksensor OTA YES Button YES LED N/A Sensor Temperature-Humidity sensor: +/-0.3℃, -40℃~70℃ Accelerometer: optional Rechargeable No Programmable parameters ◆Tx Power/Advtisement period/Lock password； ◆iBeacon UUID/Major/Mior； ◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID Buzzer N/A Others ◆Support Non connection advertisment Mode ◆Support Configruation advertisment Mode Physical features Chipset nRF528XX serie Tx Power -40 ~ 8dBm BLE BLE5.0 Supportable(High throughput, Advertising Ext, Improved coexistence, PHY Coded) Wireless Frequency Band 2.4GHz Transmitting range ◆BLE4.0/BLE5.0 ~ 100m *The range depends on physical environment. Powered by ER14505 Lithium battery Display way Beacon Gateway or via Phone App Beacon Factory Default Setting iBeacon ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001 ◆MajorID:0x0001 ◆MinorID: 0x0001 Tx Power 0dBm Broadcast interval 1000ms Eddystone UID ◆Namespace ID: 6B6B6D636E2E636FD01 ◆InstanceID ID:0x000000000001 Eddystone URL URL: www.kkmcn.com Eddystone TLM ◆Battery voltage; ◆Temperature; ◆Advertisements count/Time since power-up Default Lock Code 16Byte Lock Code: ◆0x3030303030303030303030303030303030303030 Working environment Working temperature -40℃~+70℃ Storage temperature 10℃~+25℃，≤65%RH Coded PHY Long Range Sensor Beacon
Our K6P Sensor Beacon supports Long Range feature (PHY coded) and maximum 8dBm transmit power. K6P uses nRF52833 chip and supports the Long Range feature, which will increase the transmission distance by 4 times compared to Ble 4.0.
Through the combination of Long Range and 8dBm, the K6P can reach distance >800M. (Our customers can achieve 1100M in the field test in an open environment when working with KKM KG01. KG01 also supports PHY Coded feature)

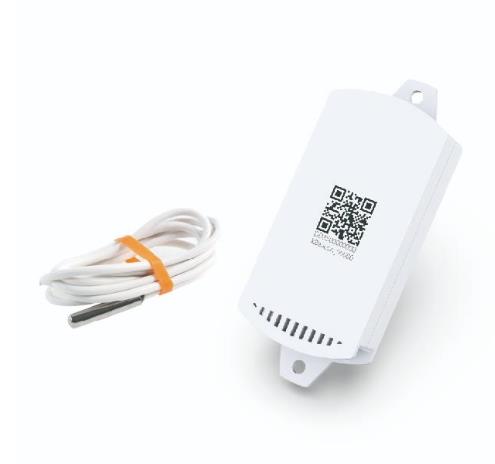

K6P Sensor Beacon is a precise temperature & humidity indicator sensor and data logger with Bluetooth® 5.0 support. It broadcast the environmental temperature and humidity data via Bluetooth.It support extended probe, which is fit for sealed environment. It can also support different sensor, such as CO2, Gas and etc.
By connecting to smartphone App via Blueooth® or KGateway gateway, it can upload temperature and humidity data to local server or remote cloud platform, and you can use KGateway to configure/set the parameter of K6P Temperature and Humidity Sensor Beacon.
With high quality integrated digital temperature and humidity chip sensor, K6P Sensor Beaocn has advantage of long-term stability, low latency and ability to resist chemical contamination.K6P Sensor Beacon has up to 8 years battery life, it supports working in ultrl-low and high temperature environment, it’s waterproof IP63, fit different usage environment. It support iBeacon, Eddystone (UID, URL, TLM), KSensor broadcast at the same time. All the parameters of this product can be modified via configuration App.
