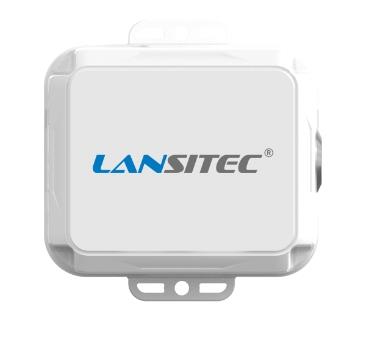

Lansitec LoRaWAN Asset Management Tracker (100-00165)

Dimension
78×79×35 mm with the mounting lugs; 78×66×35 mm without the mounting lugs

Operating Temperature
-45 °C ~ +85 °C

Storage Temperature
-60 °C ~ +90 °C

Operating Humidity
5% ~ 95% (non-condensing)

Weight
133 g

Housing Material
ABS and PC

PCB Coating
Water proof coating

Ingress Protection
IP68

Power

Battery
Li/SOCl₂ 4000 mAh × 2

GNSS (report interval >10 minutes)
Approx. 30,000 times

Bluetooth Positioning
Approx. 500,000 times

Standby Current
15 µA

Max. Current
145 mA

Bluetooth

Bluetooth Protocol
Bluetooth 5.0, iBeacon

Bluetooth TX Power
-20 to +4 dBm TX power, configurable in 4 dBm steps

Bluetooth Sensitivity
-96 dBm

LoRaWAN

LoRaWAN Protocol
1.0.2B, Class A

Activation Mode
OTAA or ABP

LoRa Frequency
US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa TX Power
0 to 20 dBm

LoRa Sensitivity
-137 dBm @ SF12, BW125 kHz, 868/915 MHz

LoRa Communication Distance

1 km in urban area

Encryption
AES128

GNSS

Encryption
BDS / GPS / GLONASS

GNSS Position Accuracy
<2.5 m CEP

Cold Start Duration
30 s to 60 s

Functions

Adjustable Position Report Interval
5 s × n (1 to 65,536)

Heartbeat Report Interval
30 s × n (1 to 65,536)

Switch
Mechanical

Temperature Report
Optional, requires request upon ordering

Temperature Sensor Range
-40 °C ~ +85 °C

Temperature Accuracy
Chamber temperature in the beacon, ±5 °C

Temperature Resolution
0.25 °C

Tamper Detection
Support

FOTA over Bluetooth
Support

Movement Duration
Support

Door Open/Close Sensing
Support

Vibration Shock Detection
Support

Asset Management with Bluetooth Tags
Support (reports nearby tags)

Offline Cache Position (40 positions)
Support

Mechanical Power Switch Enable/Disable
Support

3D Accelerometer
Support

NFC Tag
1 KB
